Extralite - HyberBar flatbar from 96g

Darimo - HyberBar flatbar from 96g

Darimo

New

Superlight carbon mtb flatbar 750mm

Lenght: from 620 to 800mm
Clamp: 31.8mm
Degrees: 6° or 9°

Weight: 79g (620mm), 84g (660mm), 92g (700mm), 98g (740mm)

More details



Product Options
BACKSWEEP
WIDTH
700mm
710mm
720mm
730mm
740mm
750mm
760mm
FINISHING
Shiny
Matte
CARBON FINISHING
3K
UD
DECALS COLOUR

White

Black

Red

Green

In stock

  • Shiny
  • Matte
  • 3K
  • UD

€ 154,92

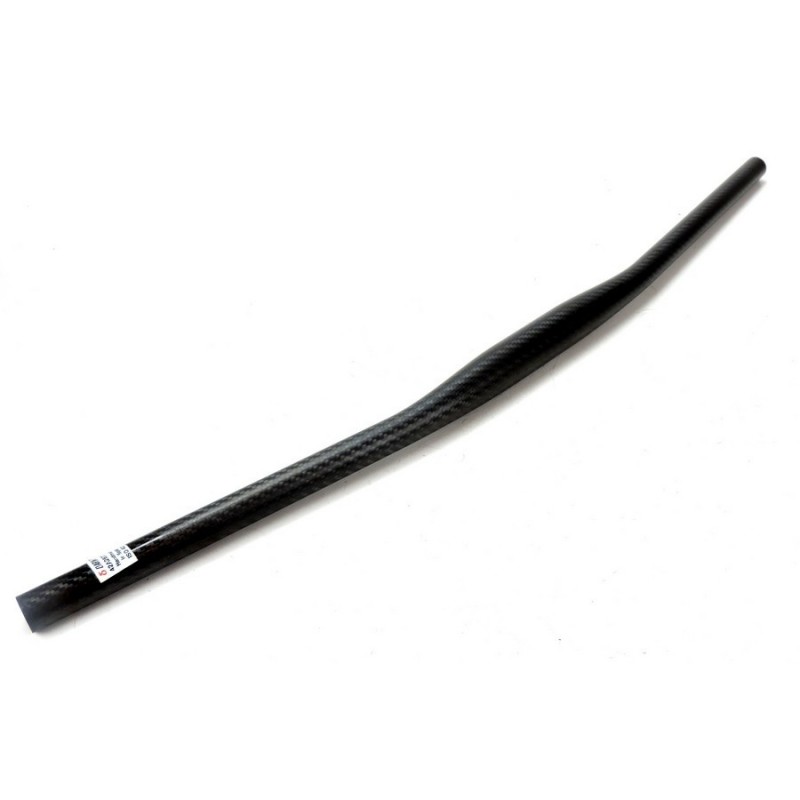

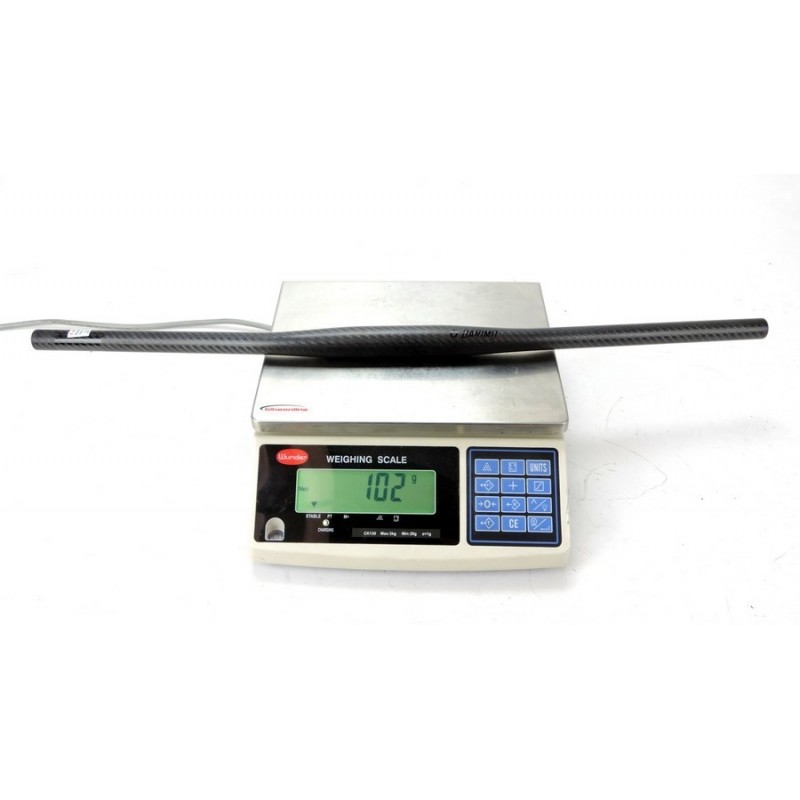

The Darimo MTB handlebar, a product designed with finite elements calculations and destructive tests until obtaining a record weight (98 g in 740mm of length).Darimo Handlebar 3

The handlebar is entirely made of carbon fiber, with a unique combination of bidirectional and unidirectional fabrics with the proper orientation to achieve the best weight-resistance-stiffness ratio, always keeping in mind your safety.

This type of laminate can be only achieved with a totally handmade construction with a location of the layers of carbon made by hand on each handlebar. There is a different number and arrangement of layers at each point.

The center diameter is 31.8 mm, adapted to the current standards. There are two bend angle options, 6 or 9 degrees. It is manufactured with the desired length of the customer with a maximum of 800mm.

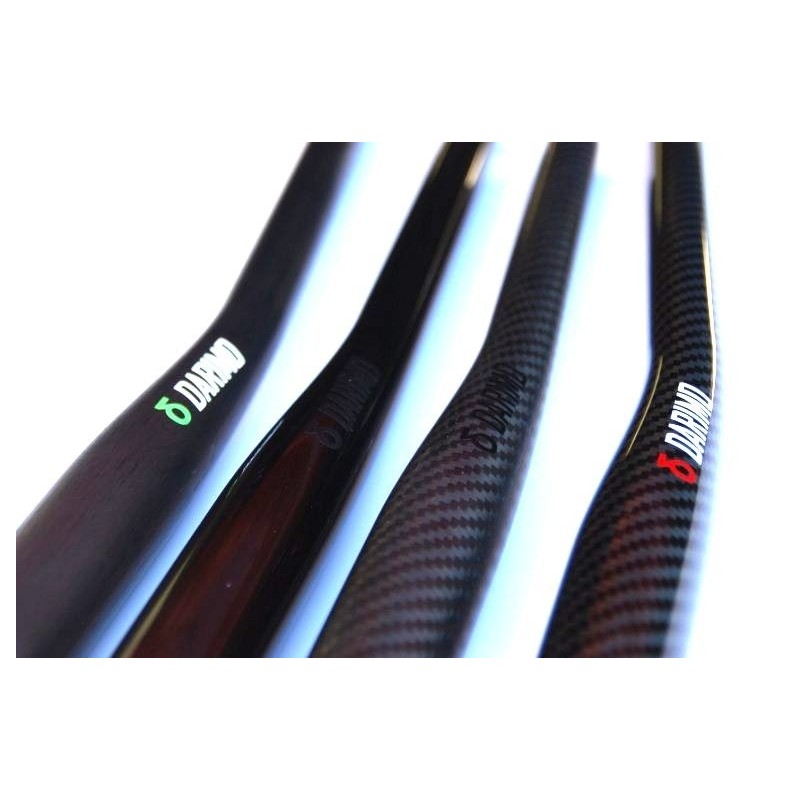

Finishing: There are four possible finishes with the combination of Gloss or matte, bidirectional 3k or UD (+ 7g), with the possibility of personalizing the color of the adhesive.Darimo Handlebar 4

Riders weight limit: The Darimo handlebar is safe and has passed the standard ISO 4210 tests, however it is not recommended for more than 90 kg. In the destructive tests, the handlebar has carried loads of 350 kg without breaking. We can manufacture a handlebar without rider weight limit with a weight increase of only 25 grams.

Use: XC MTB, not for downhill, not for barends ..

Options: 31.8 mm diameter, 6 or 9º bend and up to 800 mm width.

The handlebars are calculated exclusively for each width, so a handlebar with reduced width is not a cutted handlebar. This implies a greater work of calculation and manufacture but shorter handlebars have a very low weight.
