Darimo - T1 Loop Carbon Seatpost from 62g

Darimo - T1 Loop Carbon Seatpost from 62g

Darimo

New

Darimo T1 Loop Seatpost in which we have studied and designed all its parts to achieve a record weight.
The main post is made of carbon fiber using bidirectional and unidirectional fabrics with an studied asymmetrical laminate to achieve the optimum combination of minimum weight and maximum of resistance.

Riders weight limit: 90kg
Use: Road, ciclo-cross and MTB.

Weight: from 62g

More details



Shipped in 15/20 days

  • 25.4mm
  • 27.2mm
  • 30.9mm
  • 31.6mm
  • 300mm
  • 350mm
  • 400mm
  • Shiny
  • Matte
  • 3K
  • UD

€ 245,08

Product Options
DIAMETER

25.4mm


27.2mm


30.9mm


31.6mm

LENGTH

300mm


350mm


400mm

FINISHING

Shiny


Matte

CARBON FINISHING

3K


UD

DECALS COLOUR


Orange



White



Black



Red



Green


  Quantity:

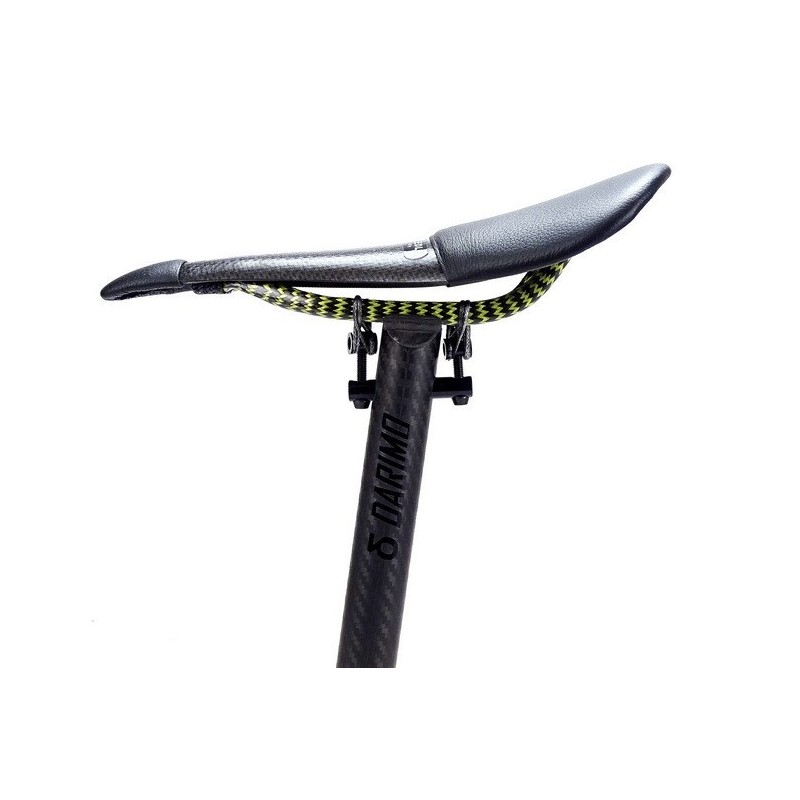

The new Darimo T1 Loop seatpost with an awesome and outstanding weight of just 90 g in 31.6mm diameter and 400mm lenght.

The main post is made of carbon fiber using bidirectional and unidirectional fabrics with an studied asymmetrical laminate to achieve the optimum combination of minimum weight and maximum of resistance.

Each seatpost is laminated by hand to achieve a record weight keeping in mind the strength and your safety. To do this, at each point of the seatpost there are a different numbers and arrangements of carbon fiber layers. The layers arrangement is obtained after finite elements analysis and destructive testing.

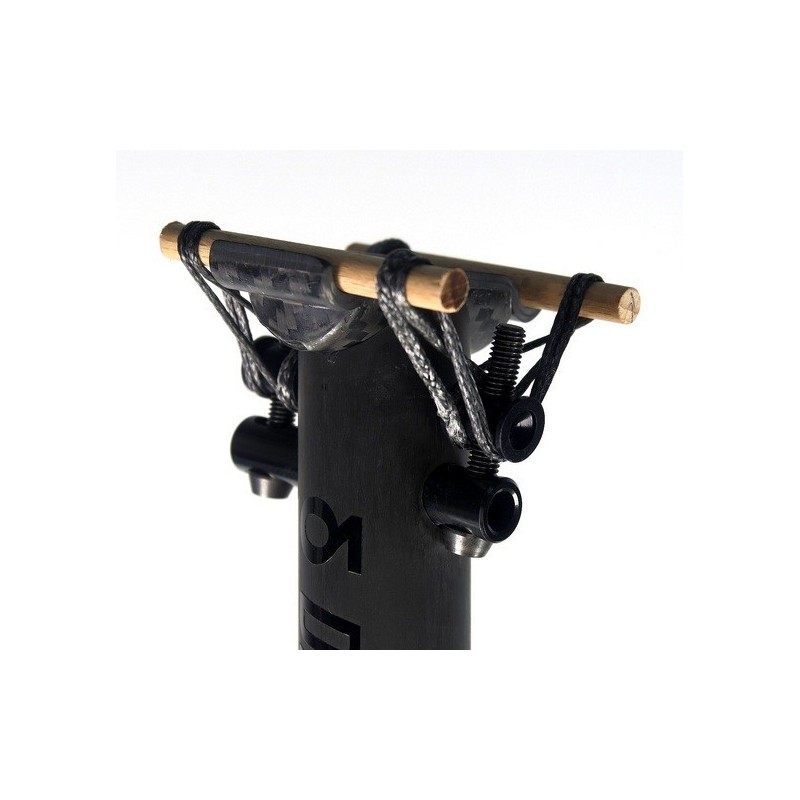

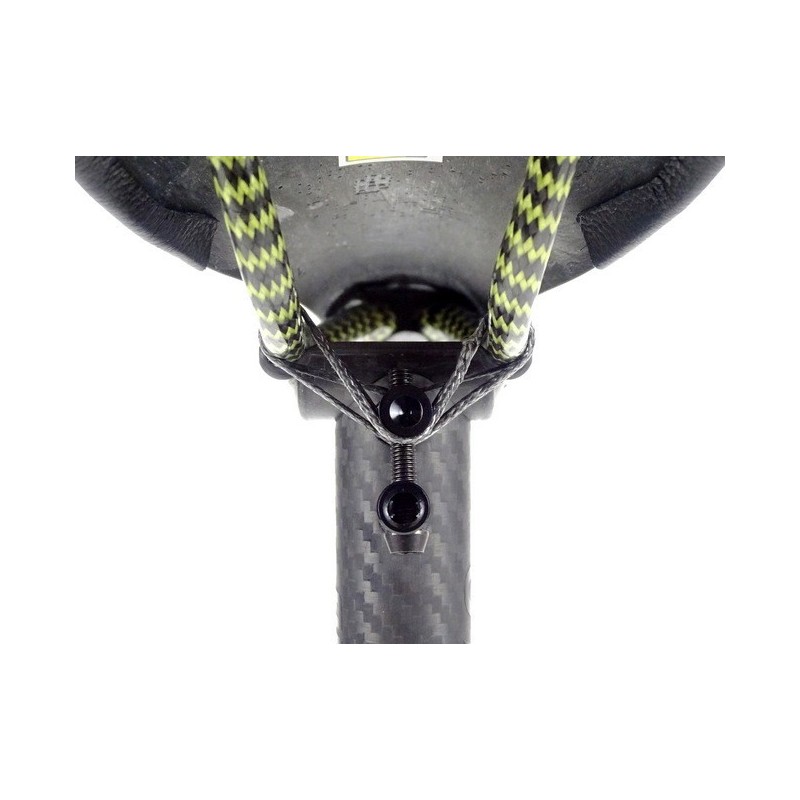

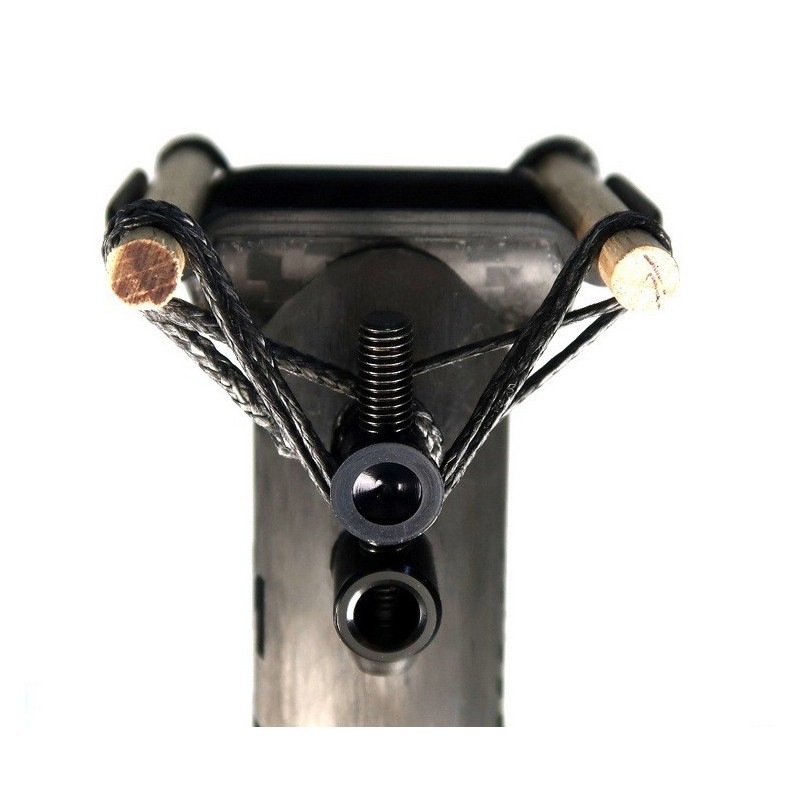

The totally new dessigned clamping system is made with two ultralight Dyneema® loops. That makes a very important weight reduction on the head of the seatpost / clamping system. This system is good for all kind of rails, including carbon rails 7*9mm.

Finishing: Bright – Mat, Bidirectional (3k) or unidirectional (+4g), customizable colors.

Riders weight limit: The Darimo T1 Seatpost is safe and has passed the standard ISO 4210 tests, however it is not recommended for more than 90 kg. If you weight more than 90 kg we will reinforce it for you.

Use: Road, ciclo-cross and MTB.

Diameter: 31.6 mm 30.9mm, 27.2 mm and 25.4mm.
Max. Length: 800mm.
Custom fabrication: Exact length, weight reduction > 5g.

Materials:
Post: Unidirectional and bidirectional carbon fiber fabrics.
Shaft and barrels: Anodized 7075 T6 Alu.
Bolts: Ti Gr5 M5.
Cradle:Unidirectional and bidirectional carbon fiber fabrics.
Subjections: 100% Dyneema® Loops

Instructions:

Here at the end of this page you will can see a video with the assembling instructions of the loops. Even you can follow this link:

https://youtu.be/2wTxtLP_2OI
