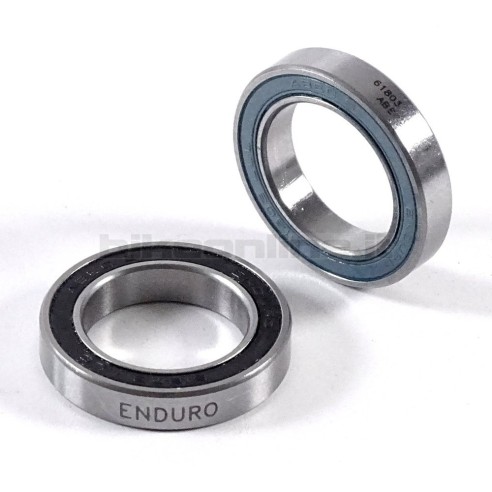

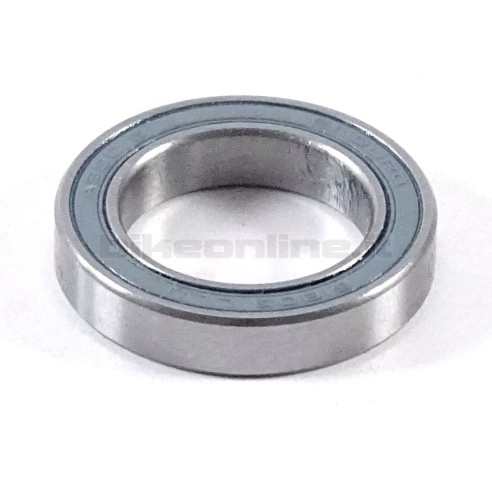

Enduro Bearings - Enduro ABEC5 bearing 6803 LLB 17x26x5mm 7.2g

DIMENSIONS 17 x 26 x 5 mm
BALL MATERIAL Chromium steel
BALL GRADE 5 US made
RACES 52100 High Carbon Chromium Steel
SEALS "LLB" Dual-lip low contact
PRECISION ABEC 5
RETAINERS Graphite/Nylon
APPLICATION Wheel Hub
WEIGHT 7.2g
€8.20

Description

Enduro ABEC5 bearing 6803 LLB 17x26x5mm 7.2g


Balls:
Grade 5 Chromium Steel Balls
High precision balls are within 5/1,000,000″ round. These are military level specification, used for precision equipment. R-64 hardness, of the highest grade.

Races:
52100 High Carbon Chromium Alloy Races
Vacuum de-gassed process for the purest chromium alloy steel, hardened to R-62, extremely tough and very durable. Polished to a mirror finish for ABEC-5 precision and noiseless movement.

Retainers:
Graphite/Nylon Ball Retainers
Nylon with graphite retainers are virtually frictionless while providing constant lubrication.

The ABEC-5 Standard:
To meet the ABEC-5 standard, bearing design must pass all tests, which include noise testing at high RPM, extremely close tolerances for I.D. and O.D., roundness of ball, trueness of the races and micro surface finishes of balls and races.

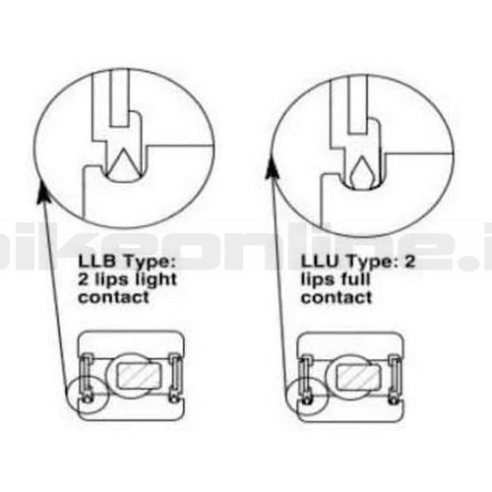

Seals:
Two NBR 70 rubber  LLB Dual-Lip seals with low contact type seal, which rides in a matching groove machined into the bearing.

Product Details

PRODUTTORE
Enduro Bearings
DIAMETRO INTERNO
17mm
DIAMETRO ESTERNO
26mm
MATERIALE SFERE
Steel
TIPOLOGIA CUSCINETTO
Steel
CODICE
6803
ENDBEA0000787
