38mm is the best solution for excellent aerodynamics with a low weight. Our ROCKYROAD 39C wheels in particular offer the best aerodynamics-to-weight ratio, thanks to their lowest weight compared to all the production wheelset on the market.

Rims: ROCKYROAD 39C DISC Hookless Tubeless Ready.
Hubs DT Swiss 240 EXP SP Center Lock: 104g + 191g.
Spokes: Blade HyperLite.
Nipples: DSN ergal.
Number of spokes: 24/24.

Maximum bike system weight: 115kg (rider, bike, clothing and backpack / bags)

Wheelset weight: 1.210g (Blade Hyperlite spokes)

DECAL COLOUR
  • White
  • Black
NIPPLE COLOUR
  • Black
COMPATIBILITY
  • Shimano 10/11/12s - Sram 10/11s (ROAD)
FRONT HUB STANDARD
  • QR12 (12x100mm thru axle)
REAR HUB STANDARD
  • QR-135mm (quick release)
READY TO SHIP
€1,490.00 €1,950.00 -23.59%
Tax included

Product Options
DECAL COLOUR


White


Black
NIPPLE COLOUR


Orange


Silver


Blue


Black


Gold


Red


Acid Green
COMPATIBILITY

Campagnolo 10/11/12s

Shimano 10/11/12s - Sram 10/11s (ROAD)

Sram XDR Road 12s

Campagnolo N3W 13s
FRONT HUB STANDARD

QR12 (12x100mm thru axle)

QR9 (quick release)
REAR HUB STANDARD

12x142mm (12mm thru axle)

QR-135mm (quick release)

  Quantity:

Description

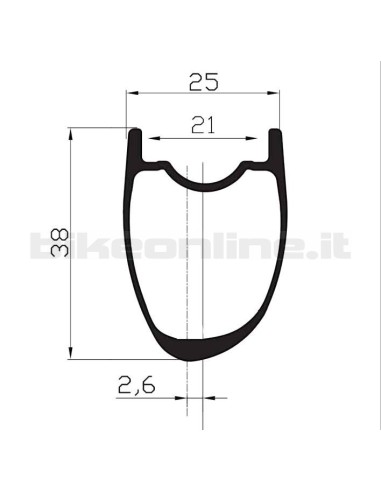

Rim features:
ROCKYROAD 39C DISC Hookless Tubeless Ready

UD carbon, matt finish with shiny decals
Height: 38mm
Width: 25mm
Internal width: 21mm
Weight: 350g

The special layering of the T800 carbon fibre sheets gives ROCKYROAD rims a high lateral stiffness, while ensuring a high shock and vibration dampening capacity, combined with extremely low weights.
Hookless: no bead hook on the internal sidewall, it allows to position the carbon fibres in a continuous manner, without interruptions that would jeopardize the strenght in a part of the rim that's one of the stressed. WARNING: Hookless rims require the use of Tubeless Ready tires only, with or without tubes. Refer to the instruction manual of the tire manufacturer to verify compatibility with hookless rims.
Asymmetric design: ensures a significant increase of stability and lateral stiffness of the wheel thanks to a more balanced spoke tension between the two sides of the wheel
Tubeless ready: tubeless convertible with specific tape and valves

ROCKYROAD rims must pass the stringent tests EN 14766 and ED 14781. These tests have been designed to ensure the strength and durability of individual parts as well as of the bicycle as a whole, demanding high quality throughout and consideration of safety aspects from the design stage onwards.

ROCKYROAD rims are intended for Road use.

Crash replacement policy: in case of accidental break of a ROCKY rim, not covered by warranty.

Hub features:
DT SWISS 240 EXP SP (Straight Pull) Center Lock
Difficult internal structure and sophisitcated milling-jobs on the outside structure were necessary to finalize these hubs. The hub-body is oversized and at the same time very light. The spoke holes are drilled with 3D angles in order to give the spokes a direction for 3.5 X lacing. We offer various conversion-kits to make the hubs compatible to fit to all major standards.
The hub body is made from forged 7075 T6 material - just a few manufacturers forge the hubshells with this material in order to get the maximum strengh out of the hubshell.
All other hub parts, such as the axles, the freewheel body and the sidecaps are made from 7075 T6 material as well.
The front and the rear axle have a diameter of 17mm at the bearing seats. Weight reductions were realized by removing axle material on the outside structure where it is not needed.
Another feature of our hubs are the anodized axles, which prevent from oxidation and corrosion.
Star Ratchet EXP freewheel body with 26 teeth
Made in ergal 7075
Center Lock rotor fixing
Weight: 104g + 191g

Spoke features:
ALPINA BLADE HYPERLITE offer a significant weight saving with no loss of resistance, stiffness of the wheel and durability of the spokes
Section: 2.0-0.9/1.6-2.0mm (bladed section is 0.9 x 1.6mm)
Black colour

Every wheelset is supplied with 3 spare spokes/nipples
Nipples: DSN ergal acid green, black, blue, gold, green, orange, red or silver
Not supplied with quick releases

Our wheels are built by hand in house by highly specialized personnel.
The Bikeonline staff uses the best professional tools on the market into each step of the wheelbuilding process. The P&K Lie truing stand is one example, it allows us to check perfect truing through precise decimal comparators (0.1 millimeters accuracy).
We build most of the tools we use, to fit the level of our builds, which require a high accuracy.
The use of different tensiometers as Park Tool, Pillar and DT Swiss allows us to reach the correct tensions of every spokes.
Each wheel is pre-stressed by hand to ensure that nothing has been settling during the early stages of use and that the spoke tension remains constant for a long time even under very high loads.

This product is to be considered produced on request / on order, due to the high customization needed. It is therefore not possible to use the right of withdrawal or the cancellation of an order already confirmed.
See "Terms and conditions of use". Advance payment is required on this product.

Product Details

RIM HEIGHT
38mm
RIM DIAMETER
28"
INTERNAL WIDTH
21mm
WIDTH
25mm
RIM MATERIAL
Carbon
SPOKES MODEL
Alpina steel
WEIGHT PAIR
1.20 kg - 1.30 kg
RIM MANUFACTURE
ROCKY
HUB MANUFACTURE
DT SWISS
RIM TYPE
Clincher
Tubeless Ready
TYPE OF WHEELS
Road Disc Brake
