DUKE 29" Lucky Star HD 6TERS aluminum MTB wheels
The DUKE 29" Lucky Star HD 6TERS aluminum rims are light, stiff and very high quality.
Duke selects the materials used very carefully in order to offer the best possible product.

DUKE 29" Lucky Star HD 6TERS 29er rims, 29.5mm channel, 435g.
Hubs: Carbon-Ti X-HUB MTB SP 91g (112g RS-1) + 185g.
Alpina Blade HyperLite / SuperLite flat spokes
Nipples DSN ergal color of your choice.
Number of spokes: 28/28.

Maximum bike system weight: 105kg (rider, bike, clothing and rucksack/bags)

Pair weight:
- 1.400g (Blade HL spokes)
- 1.450g (Blade SL spokes)

The sales kit includes:
- DUKE 29" Aluminum MTB Wheelset Lucky Star HD 6TERS / Carbon-Ti X-HUB MTB SP MTB wheelset.
- 3 flat Alpina Blade spokes.
- 3 spare DSN nipples.
- Tubeless tape installed.
- Barbieri Carbonaria valves installed.

REAR WHEEL DISH
  • Standard
HUB COLOUR
  • Black
NIPPLE COLOUR
  • Black
COMPATIBILITY
  • Sram XD 11/12s
SPOKE TYPE
  • Alpina Blade SuperLite
FRONT HUB STANDARD
  • Boost 15x110mm
REAR HUB STANDARD
  • 12x142mm (12mm thru axle)
READY TO SHIP
€949.00 €1,065.00 -10.89%
Tax included

Product Options
REAR WHEEL DISH

Cannondale AI

Standard
HUB COLOUR


Silver


Blue


Black


Matte Black


Gold


Red


Acid Green
NIPPLE COLOUR


Orange


Silver


Blue


Black


Brass


Gold


Red


Green


Acid Green


Purple
COMPATIBILITY

Shimano Micro Spline 12s

Shimano/Sram MTB 10/11s

Sram XD 11/12s
SPOKE TYPE

Alpina Blade HyperLite
[Add €67.34]

Alpina Blade SuperLite
FRONT HUB STANDARD

Boost 15x110mm

Lefty 2.0 / Ocho
REAR HUB STANDARD

12x142mm (12mm thru axle)

Boost 12x148mm

  Quantity:

Description

Rims features:
DUKE 29" Lucky Star HD 6TERS in aluminum is light, stiff and very high quality.
Duke selects the materials used very carefully in order to offer the best possible product.

Intended use: Cross Country, Trail
Material: aluminum
Rim Type: Clincher (clincher and folding)

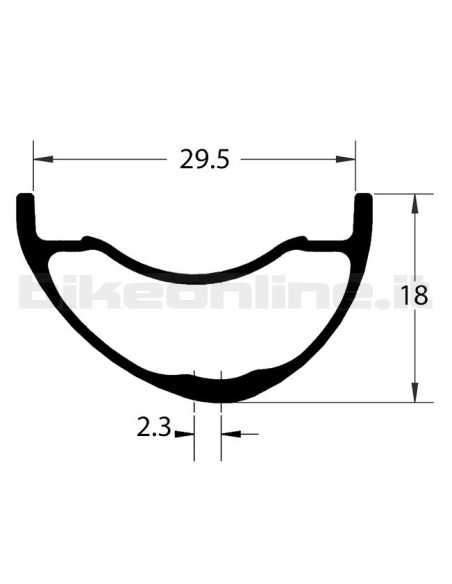

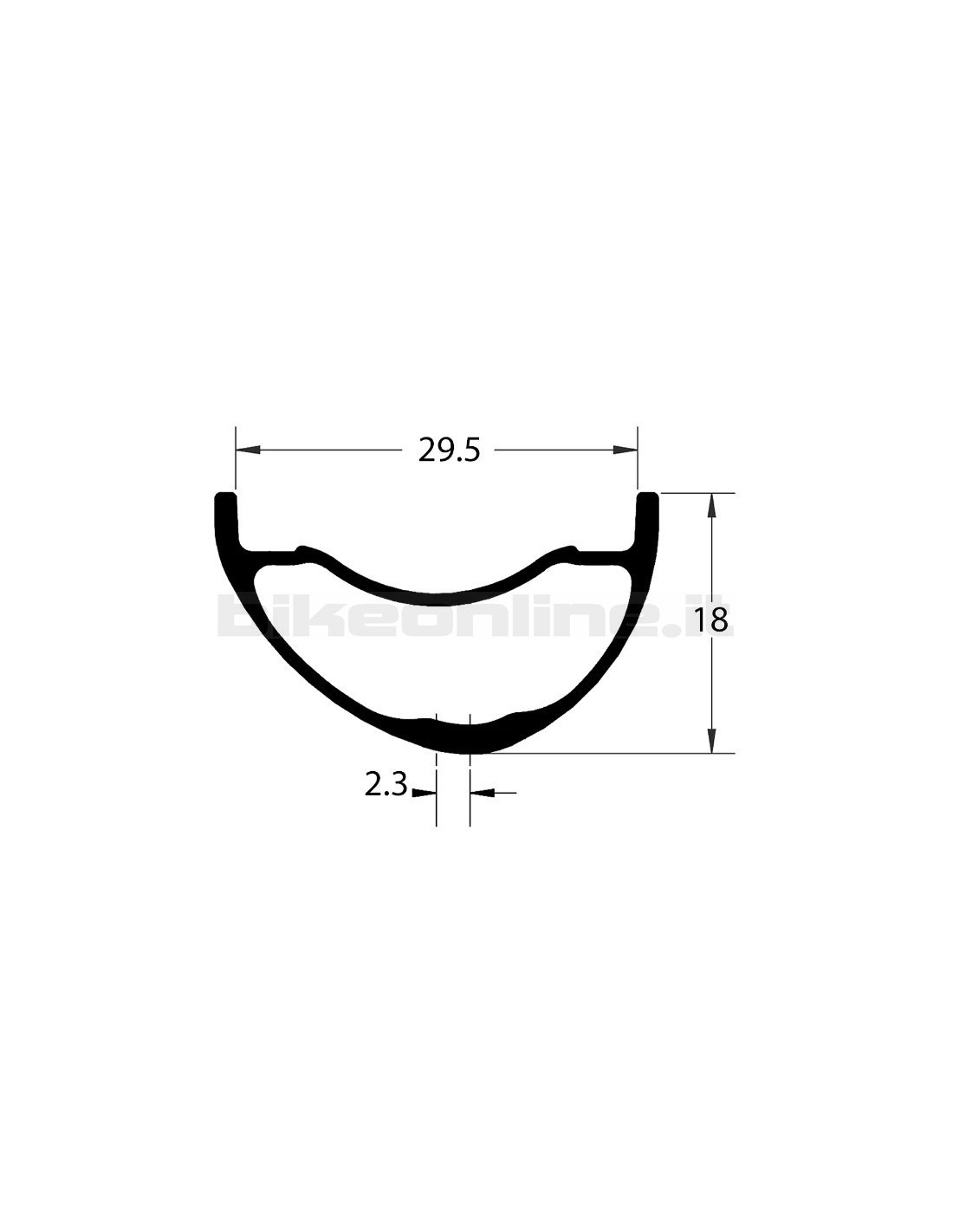

Inner width: 29.5mm
External width: 32.00mm
Rim height: 18mm
Number of holes: 28
Tubeless Rady: yes
recommended tire width: 2.0" - 2.6"
maximum tire pressure: 2.8 bar (2.25")
Finish: matte
Black colour
Weighed weight: 435g

Hub features:Hub features:
CARBON-TI X-HUB Boost MTB SP (Straight Pull)

Made in ergal 7075
Internationl Standard 6 holes rotor fixing
Sealed bearings: 2 front, 4 rear
Ergal cassette body, with 4 pawls and 56 P.O.E. (Point Of Engagement)
Front hub axle type: Boost 15 x 110
Rear hub axle type: Boost 12 x 148
Spoke type: Straightpull
Weight: 91g (112g RS-1, 89g Lefty 2.0) + 185g

Spoke features:
ALPINA BLADE SUPERLITE
Made in Italy by Alpina
Made with AISI 302 stainless steel through cold forging process.
Section: 2.0-0.9/2.2-2.0mm (bladed section is 0.9 x 2.2mm)
ALPINA BLADE HYPERLITE
offer a significant weight saving with no loss of resistance, stiffness of the wheel and durability of the spokes
Section: 2.0-0.9/1.6-2.0mm (bladed section is 0.9 x 1.6mm)
Black colour

Every wheelset is supplied with 3 spare spokes/nipples

Nipples: Pillar DSN ergal acid green, black, blue, gold, green or red
Not supplied with quick releases

Our wheels are built by hand in house by highly specialized personnel.
The Bikeonline staff uses the best professional tools on the market into each step of the wheelbuilding process. The P&K Lie truing stand is one example, it allows us to check perfect truing through precise decimal comparators (0.1 millimeters accuracy).
We build most of the tools we use, to fit the level of our builds, which require a high accuracy.
The use of different tensiometers as Park Tool, Pillar and DT Swiss allows us to reach the correct tensions of every spokes.
Each wheel is pre-stressed by hand to ensure that nothing has been settling during the early stages of use and that the spoke tension remains constant for a long time even under very high loads

This product is to be considered produced on request / on order, due to the high customization needed. It is therefore not possible to use the right of withdrawal or the cancellation of an order already confirmed.
See "Terms and conditions of use". Advance payment is required on this product.

Product Details

RIM HEIGHT
18mm
RIM DIAMETER
29"
INTERNAL WIDTH
29mm
WIDTH
32mm
RIM MATERIAL
Carbon
SPOKES MODEL
Alpina steel
WEIGHT PAIR
1.40 kg - 1.50 kg
RIM MANUFACTURE
Duke
HUB MANUFACTURE
Carbon-Ti
RIM TYPE
Tubeless Ready
TYPE OF WHEELS
XC / Marathon
