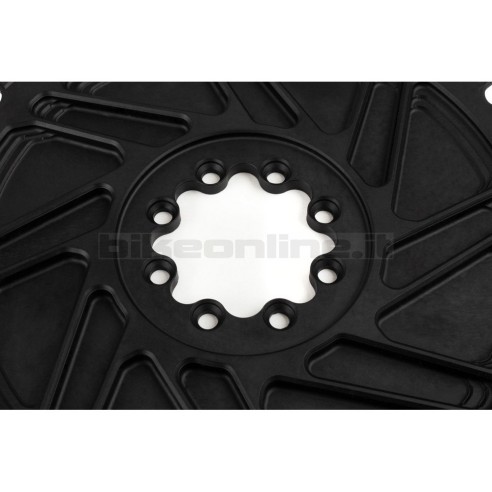

X-DirectDisc 8-Hole 3mm Offset chainrings, are compatible with direct mount SRAM 8-hole MTB cranks with 3mm offset (e.g. SRAM XX SL, XX or X0 174mm Q-Factor).
Are compatible with the new SRAM 12s T-Type, SRAM Eagle 12s (XX1, X01, GX, NX & SX) and Shimano Hyperglide + 12s (XTR, XT, SLX, Deore). Compatibility with 11-speed chains is also ensured. The fixing to the crank using the original SRAM screw kit supplied with the crank.
Intended use: MTB
Material: aluminum Al7075-T6
Technology: Narrow Wide
Fastening: SRAM 8-hole mount
Compatibility cranks: SRAM 8-hole MTB cranks
Compatibility chain: 12-speed SRAM T-Type, Shimano HyperGlide + 12s and 11s chains
Mounting Position: Direct Mount
Chain line: 55mm (with WIDE crank)
Offset: 3mm
Color: Black Anodized
Available teeth: 30T, 32T, 34T, 36T, 38T
Made in Italy
Weight: 58g (30T), 63g (32T), 67g (34T), 71g (36T), 78g (38T)
CODE:
30T XDD308H3N
32T XDD328H3N
34T XDD348H3N
36T XDD368H3N
38T XDD388H3N
X-DirectDisc are the newest single chainring MTB direct mount in AL7075-T6. They are compatible with the current SRAM T-Type 12s (SRAM XX and X0) groups and chains.
These chainrings are available with an 8-hole or 3-hole interface with different offsets, ensuring perfect integration with your transmission.
The high-quality aviation alloy ensures a longer life than the aluminum alloy used on other chainrings. The "AERO" design ensures structural stiffness and lightness at the same time.
The X-DirectDisc single chainrings have synchronized teeth (Narrow/Wide), which don't need a chain guide. The innovative tooth processing makes them optimal even in extreme mud conditions.
