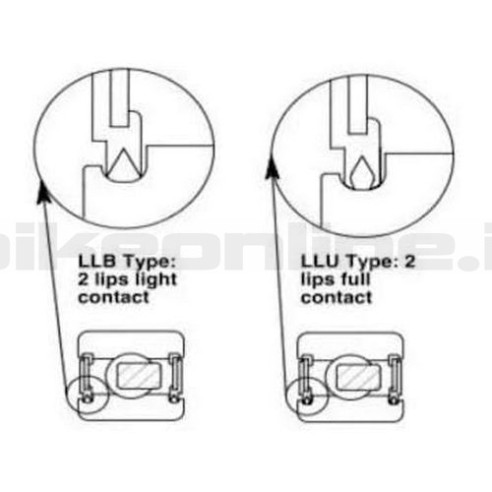

Bearing with differentiated seals: LLU (medium contact, grey) / LLB (light contact, black). The LLU seal offers greater protection against dirt and moisture and should therefore be positioned on the outside of the hub.
| DIMENSIONS | 18 x 30 x 7 mm |
| BALL MATERIAL | Chromium steel |
| BALL GRADE | 5 US made |
| RACES | 52100 High Carbon Chromium Steel |
| SEALS | LLU/LLB Dual Seal Technology |
| PRECISION | ABEC 5 |
| RETAINERS | Graphite/Nylon |
| APPLICATION | Wheel Hub |
| WEIGHT | 15.5g |

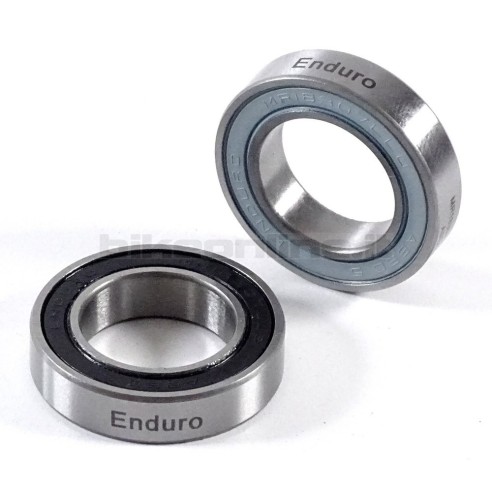

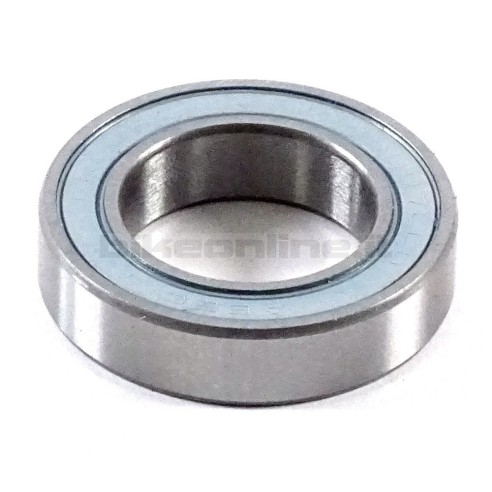

Enduro ABEC5 bearing MR18307 LLB 18x30x7mm 15.5g
Balls:
Grade 5 Chromium Steel Balls
High precision balls are within 5/1,000,000″ round. These are military level specification, used for precision equipment. R-64 hardness, of the highest grade.
Races:
52100 High Carbon Chromium Alloy Races
Vacuum de-gassed process for the purest chromium alloy steel, hardened to R-62, extremely tough and very durable. Polished to a mirror finish for ABEC-5 precision and noiseless movement.
Retainers:
Graphite/Nylon Ball Retainers
Nylon with graphite retainers are virtually frictionless while providing constant lubrication.
The ABEC-5 Standard:
To meet the ABEC-5 standard, bearing design must pass all tests, which include noise testing at high RPM, extremely close tolerances for I.D. and O.D., roundness of ball, trueness of the races and micro surface finishes of balls and races.
Seals:
Two NBR 70 rubber LLB Dual-Lip seals with low contact type seal, which rides in a matching groove machined into the bearing.
