THM-Carbones - Clavicula SE Crankset BCD 110mm 299g
THM-Carbones - Clavicula SE Crankset BCD 110mm 299g
THM-Carbones - Clavicula SE Crankset BCD 110mm 299g

THM-Carbones - Clavicula SE Crankset BCD 110mm 299g

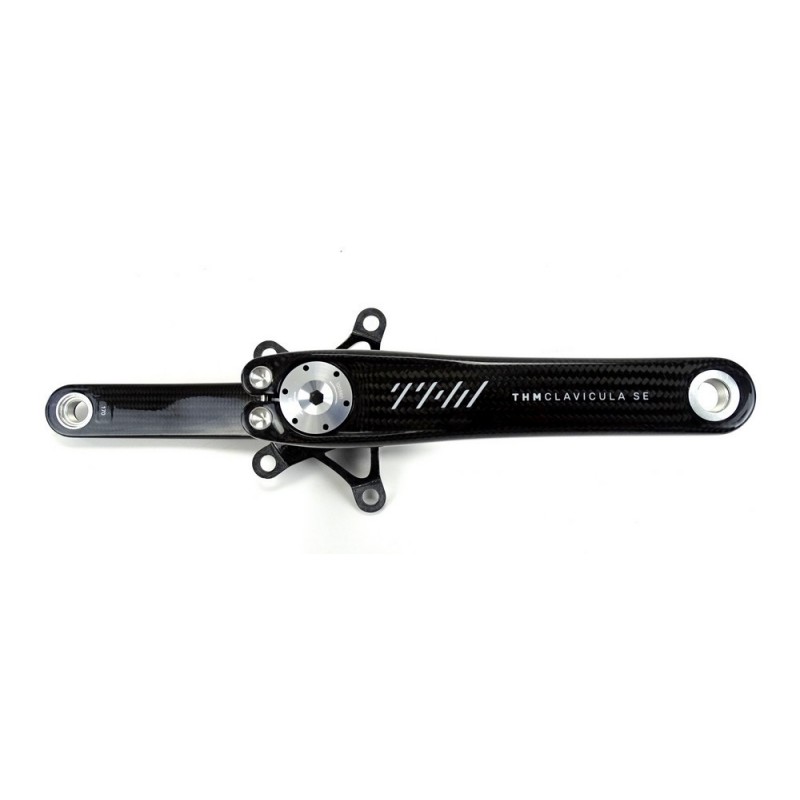

THM CARBONES crank Clavicula SE Road BCD 110mm

Technical specifications:

Use: Road bike, Triathlon, Gravel
Material crank arms: carbon
Material Spider: Carbon
Material crankshaft: carbon
Diameter crankshaft: 30 mm
Crank lengths: 170 mm / 172.5 mm / 175 mm
bolt circle diameter diameter: 110 mm
Spider: 5-arm
chain line: 43.5 mm
Q-factor: 148 mm
Inner width: 118 mm max.
Compatibility Bottom Bracket: BB30, Pressfit30, BBRight (optional, not included)
Driver weight: max. 120 kg
Finish: 3K carbon matt or glossy
Color: Black

Weight: 299g

FINISH
  • Shiny
  • Matte
CRANK LENGHT
  • 170mm
  • 172.5mm
  • 175mm
AVAILABLE IN 24 WEEKS
€941.80

Description

THM CARBONES crank Clavicula SE Road LK 110 2-fold

The Clavicula SE is a full carbon crank with integrated carbon axle.
During the development special emphasis was placed on an optimal structural design. To emphasize here is the Spider for the Kettenblattaufnahme.
It was defined both geometrically and structurally only after analysis of the load paths. An extreme lateral stiffness for optimum shifting behavior and excellent circumferential rigidity for lossless power transmission has been created.
Through this optimization, as a side effect, an above-average stiff and lightweight crankshaft system emerged.
THM-Carbones is particularly proud of a patent in the connection of the left crank with the axle . For the first time, a carbon-carbon material combination has been used here, which has been extensively and successfully tested in recent years.
It is crucial that the relative movements between the teeth could be minimized here by identical fiber structure of external and internal teeth. As a result, there is practically no wear and no possibility of noise generation at this point.
The Clavicula SE significantly shifts the standards set by THM-Carbones.
It can be considered as a new reference in cranking.

This product is to be considered produced on request / on order, due to the high customization needed. It is therefore not possible to use the right of withdrawal or the cancellation of an order already confirmed.
See "Terms and conditions of use". Advance payment is required on this product.

Product Details

THMBRA13022019
