The natural evolution of E-Bones QRC with remarkable improvements.
- Axle diameter grew up from 22 to 27mm.
- Overall structure is stiffer and stronger.
- New bearing preload system.
- Self extracting left crank.

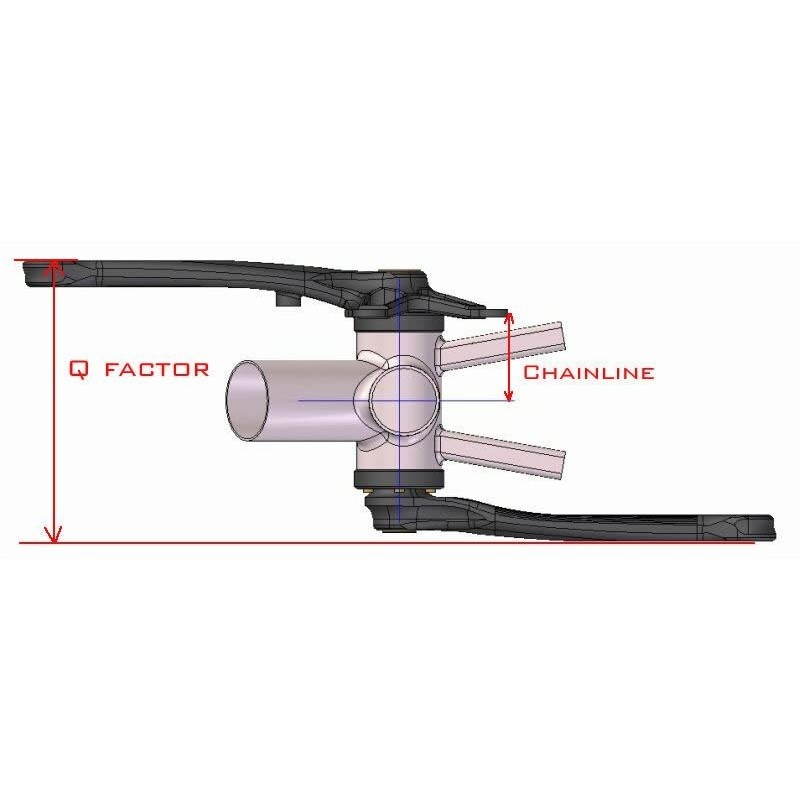

Q-factor: 138mm
Bcd: 110mm standard compact
Compatible with: BSA 68mm, BB30-68, BB91-42, BB91-41B, PF30-68, BB386 Evo, BB Right 46


Weight: da 476g

EXTRABOLT 1 BOLTS
  • Black
  • No
CHAINRINGS
  • No
BEARINGS
  • ABEC5 Steel
CRANK LENGHT
  • 172.5mm
BOTTOM BRACKET
  • BSA (passo inglese)
Product available with different options
€494.00
Tax included

Product Options
EXTRABOLT 1 BOLTS

Blue
[Add €19.00]

Black
[Add €19.00]

No

Gold
[Add €19.00]

Red
[Add €19.00]

Green
[Add €19.00]
CHAINRINGS

No

OctaRamp CH2 53/39
[Add €149.00]

OctaRamp MC 52/36
[Add €149.00]

OctaRamp RC2 50/34
[Add €149.00]
BEARINGS

ABEC5 Steel

HDC Ceramic
[Add €79.00]
CRANK LENGHT

170mm

172.5mm

175mm
BOTTOM BRACKET

BB Right

BB30

BB386

BB91-41B

BB91-42

BSA (passo inglese)

PF30

  Quantity:

Description

We still mantain best features of E-Bones QRC: Lowest Q-factor, SSP, oversized bearings, sculpture machining and extremely lightweight.

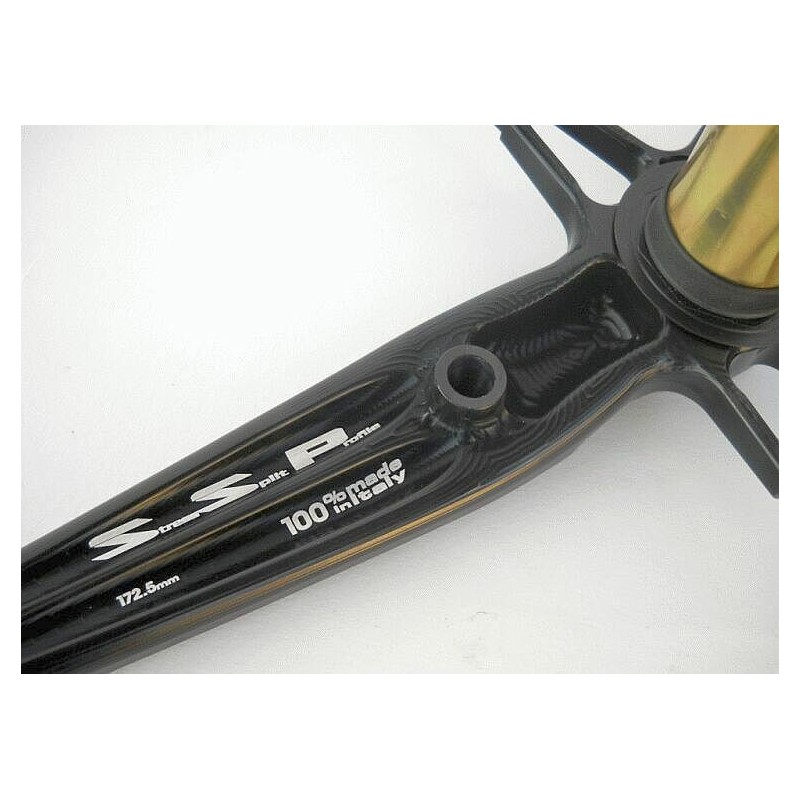

QRC2 our new generation of road compact E-Bones bring SSP (stress split profile) concept to the extreme, they are stiffer lighter and slimmer!

Both cank levers have been designed for an innovative hyper sophisticate 3D cnc process that allows higher freedom on multidimensional shaping.
Bearing preloader allows an easy and perfect preload adjustment

Self extracting left crank: no special tools are required!

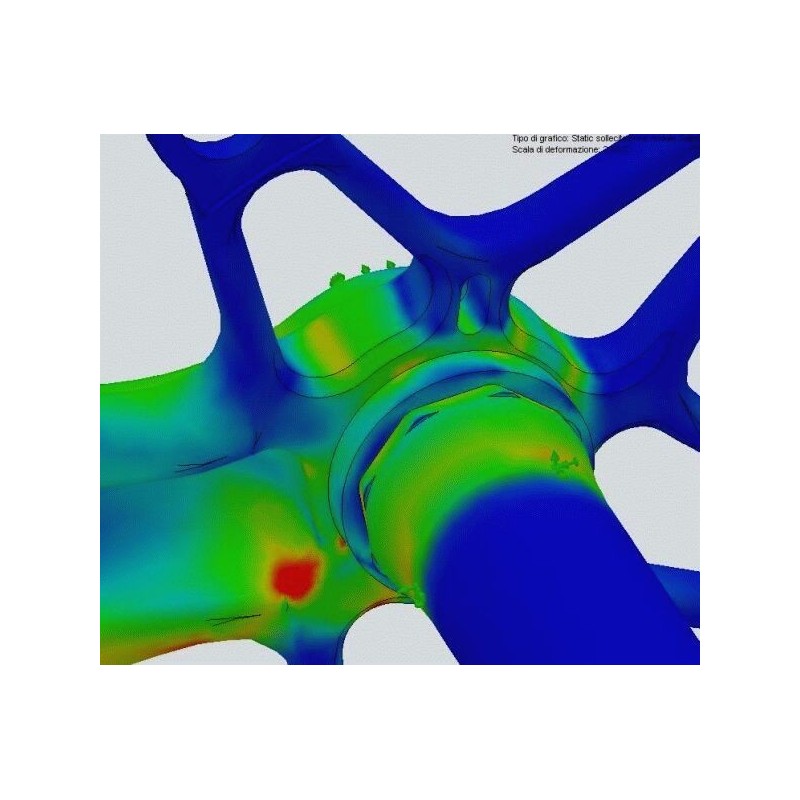

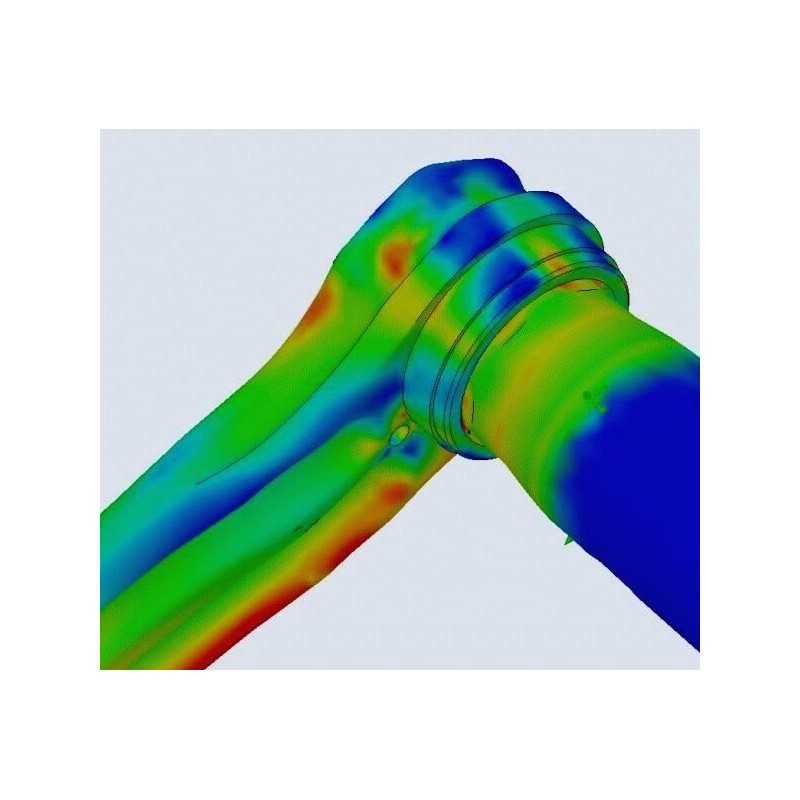

Hyper accurate Finite Element structure analysis minimizes stress concentrations and improves fatigue resistance.

Each crankset receives the same sculpturing, processing and care once limited only to prototype units.

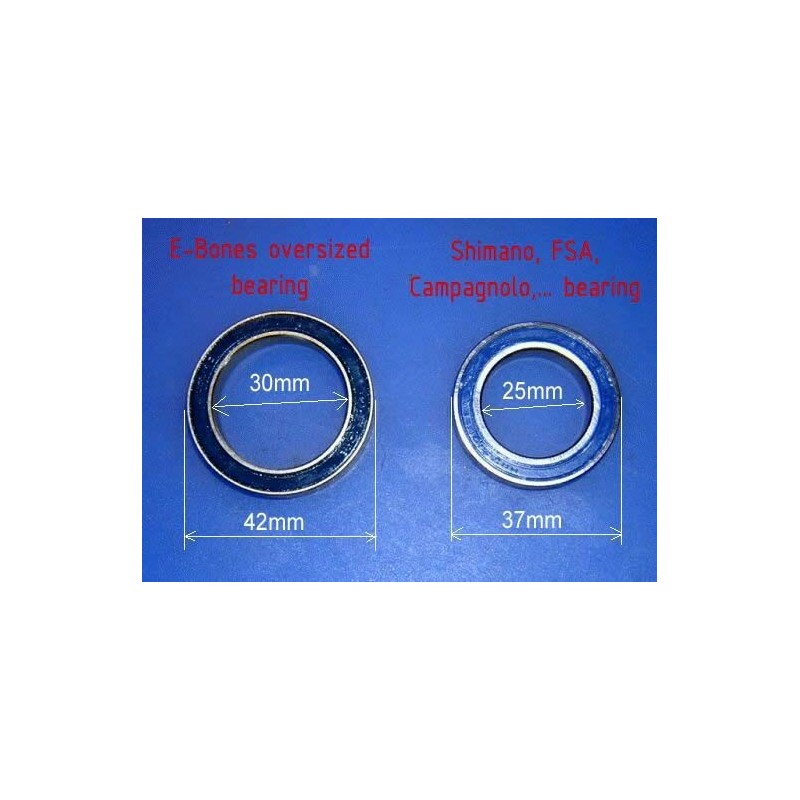

Bearings: E-Bones come ready equipped with special bearings 6806 2rs (30-42-7mm). Our special bearings feature oversized balls, low friction seals and lighter weight.
Bearila E-Bones Rngs: E-Bones come ready equipped with special bearings 6806 2rs (30-42-7mm). Our special bearings feature oversized balls, low friction seals and lighter weight.
Hybrid Ceramic option is also available on demand (HybridUp W).
We warmly recommend to use the original bearing.
However bearing fittings on E-Bones can accept any standard 6806 2rs bearing.

Hours of state-of-art point-to-point 3D milling technology.

Stiff, light and slim!

Model: Bsa68 mm
Weight: 467g
Q factor: 139mm
Chainline: 43.5mm

BSA68mm  SM-BB6700 thread 1.37 X 24 T.P.I.

Model: BB30-68
Weight: 479g
Q factor: 139mm
Chainline: 43.5mm
BB30 68mm wide
Model: BB91-42
Weight: 458g
Q factor: 139mm
Chainline: 43.5mm

BB91-42

Model: BB91-41B
special 41mm bearing included
Weight: 455g
Q factor: 139mm
Chainline: 43.5mm

BB91-41B

Model: PF30-68
Weight: 480g
Q factor: 139mm
Chainline: 43.5mm

Model:BB386 Evo
Weight: 479g
Q factor:139mm
Chainline: 43.5mm

Model: BB Right 46
Weight: 479g
Q factor:139mm
Chainline: 43.5mm
