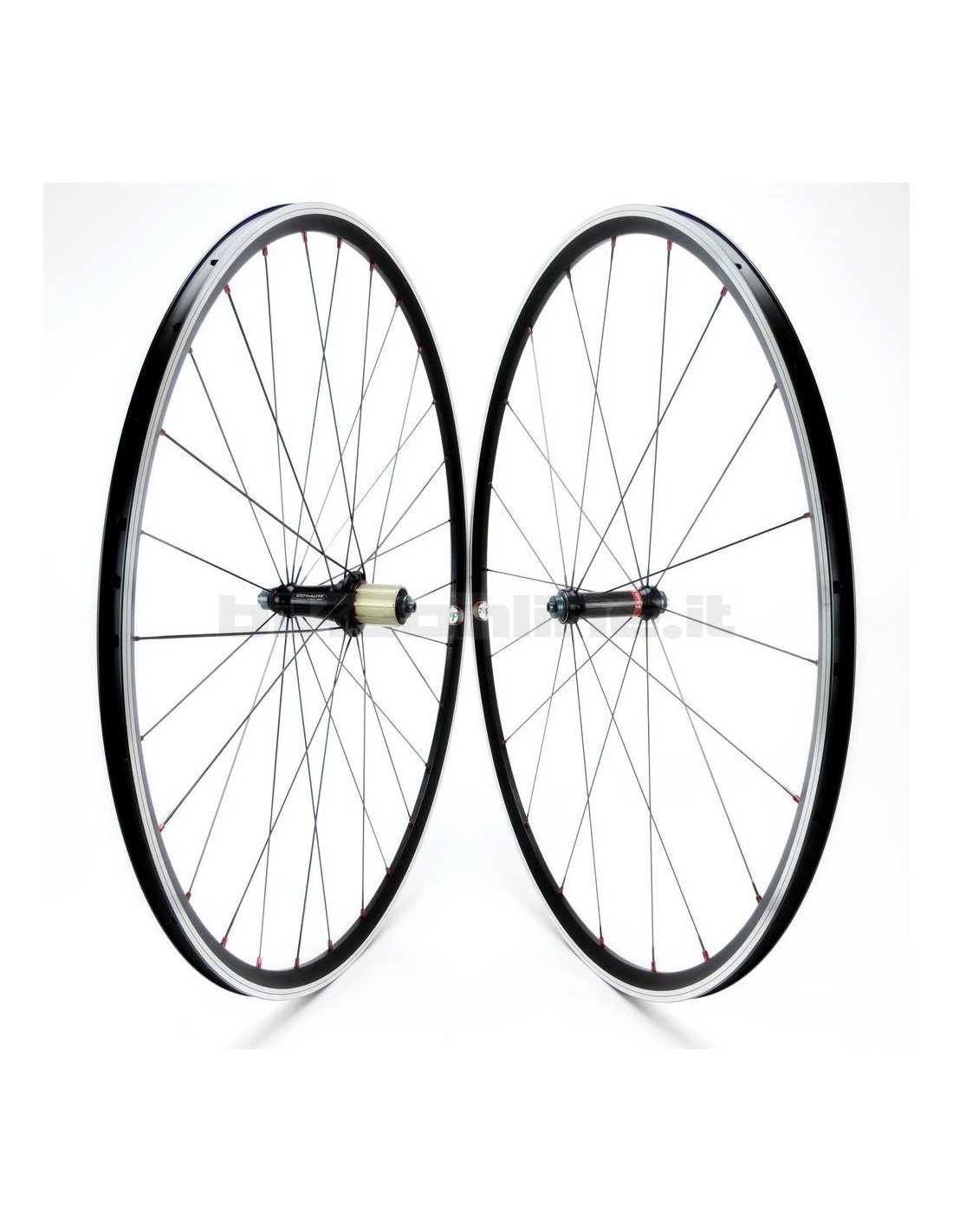

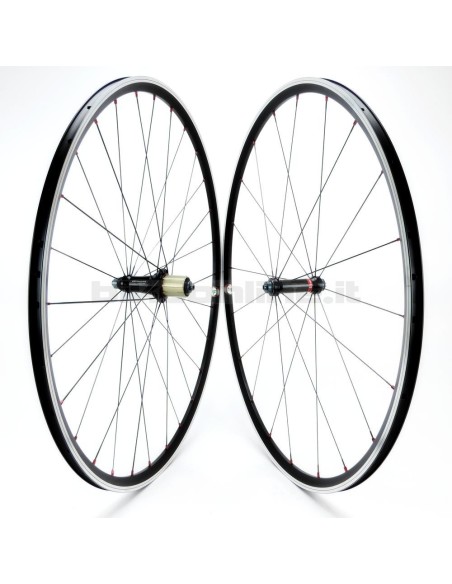

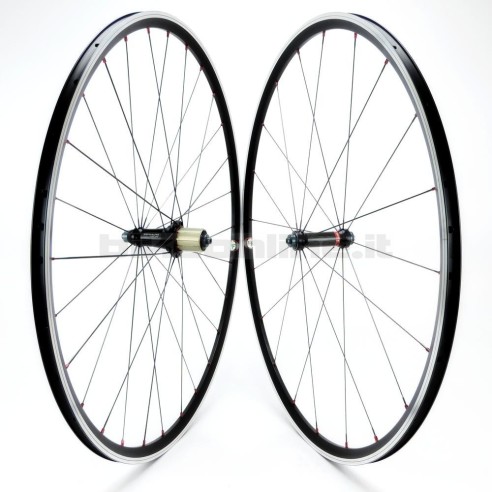

DRC KTC 380 clincher / Extralite MRC01 aluminium road wheelset from 1.150g
DRC KTC 380 clincher / Extralite MRC01 aluminium road wheelset from 1.150g
DRC KTC 380 clincher / Extralite MRC01 aluminium road wheelset from 1.150g
DRC KTC 380 clincher / Extralite MRC01 aluminium road wheelset from 1.150g
DRC KTC 380 clincher / Extralite MRC01 aluminium road wheelset from 1.150g
DRC KTC 380 clincher / Extralite...
DRC KTC 380 clincher / Extralite MRC01 aluminium road wheelset from 1.150g
DRC KTC 380 clincher / Extralite MRC01 aluminium road wheelset from 1.150g
DRC KTC 380 clincher / Extralite MRC01 aluminium road wheelset from 1.150g
DRC KTC 380 clincher / Extralite MRC01 aluminium road wheelset from 1.150g
DRC KTC 380 clincher / Extralite MRC01 aluminium road wheelset from 1.150g
DRC KTC 380 clincher / Extralite MRC01 aluminium road wheelset from 1.150g

DRC KTC 380 clincher / Extralite MRC01 aluminium road wheelset from 1.150g

Custom wheelset handbuilt by Bikeonline

Rim: DRC KTC 380
Hubs: Extralite MRC01: 58g + 158g
Spokes: Alpina Blade SuperLite or Blade HyperLite
Nipples: Pillar DSN ergal
Number of spokes front/rear: 20/24 o 24/28

Maximum bike system weight: 110kg (rider, bike, clothing and backpack / bags)

Weight:
1.150g
Blade HyperLite
Spokes
1.190g  Blade SuperLite Spokes


HUB COLOUR
  • Red
NIPPLE COLOUR
  • Black
BEARINGS
  • Enduro Steel
SPOKE TYPE
  • Alpina Blade SuperLite
AVAILABLE IN 7/10 DAYS
€487.70 €598.36 -18.49%

Product Options
HUB COLOUR


Red
NIPPLE COLOUR


Blue


Black


Gold


Red


Green


Acid Green
BEARINGS

Enduro Steel

HSC Ceramic
[Add €95.53]
SPOKE TYPE

Alpina Blade HyperLite
[Add €70.39]

Alpina Blade SuperLite

  Quantity:

Description

Rim features:
DRC KTC 380
Black anodized aluminium
Height: 22mm
Width: 18.5mm
Internal width: 13.5mm
Made in Italy
Weight: 380g

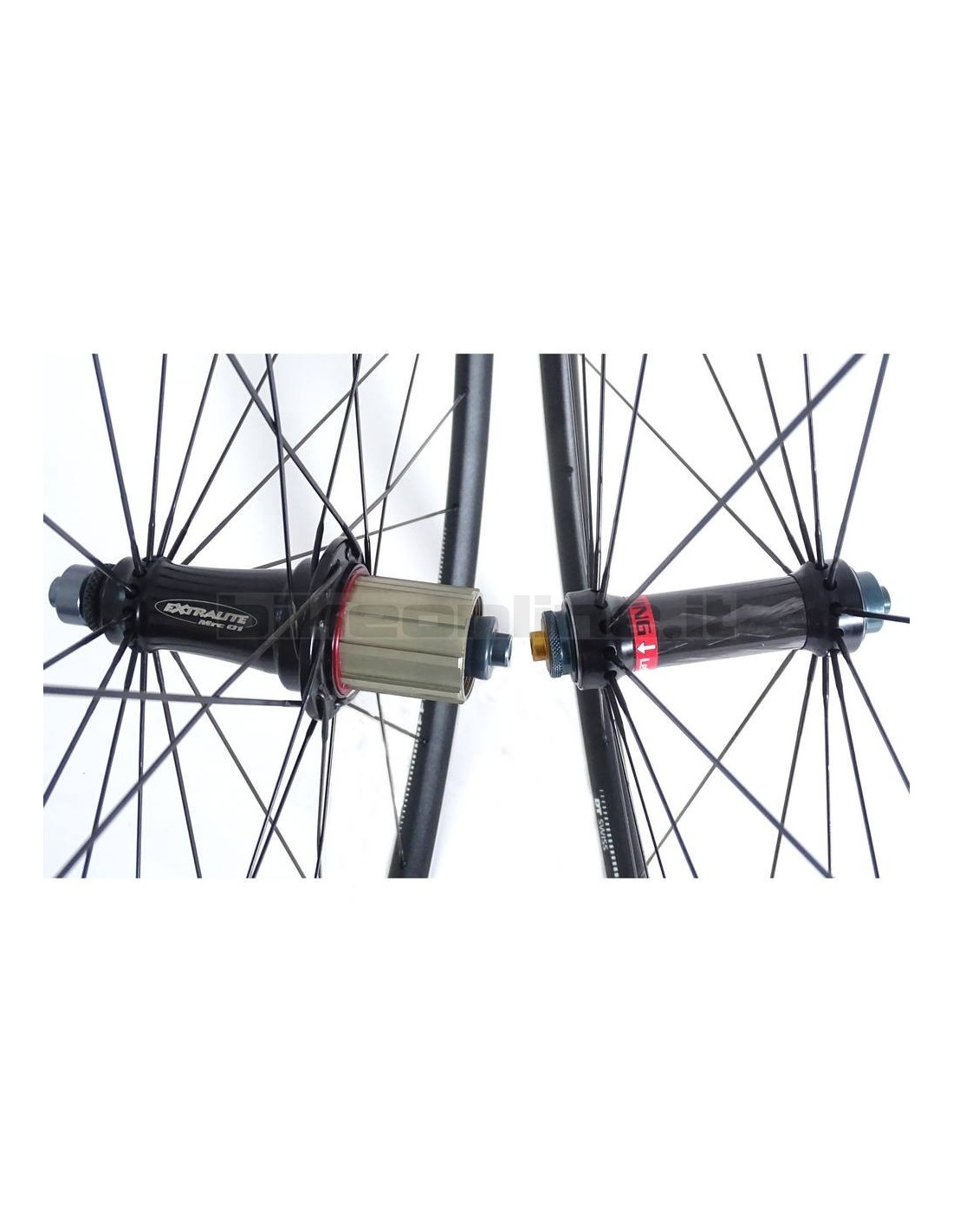

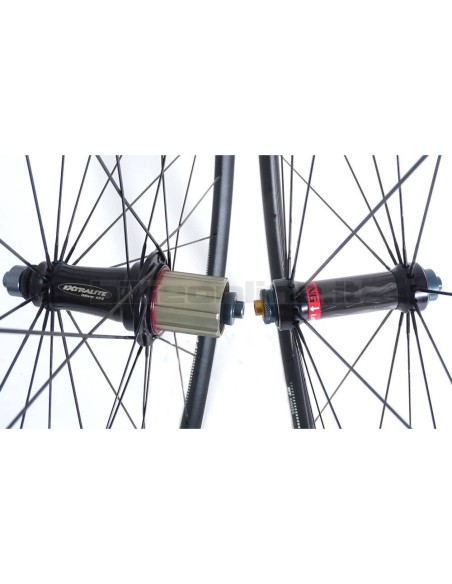

Hubs features:
EXTRALITE MRC01
Made in ergal 7075, front with carbon tube
Low-friction sealed cartridge bearings with external micro-tuner
Bearings: 2 front, 3 rear
Ergal cassette body, with 2 pawls
Colour: black or red
Ceramic bearings option
Made in Italy
Weight: 58g + 158g

Spokes features:
ALPINA BLADE SUPERLITE
Made in Italy by Alpina
Made with AISI 302 stainless steel through cold forging process.
Section: 2.0-0.9/2.2-2.0mm (bladed section is 0.9 x 2.2mm)
ALPINA BLADE HYPERLITE
offer a significant weight saving with no loss of resistance, stiffness of the wheel and durability of the spokes
Section: 2.0-0.9/1.6-2.0mm (bladed section is 0.9 x 1.6mm)
Black colour

Every wheelset is supplied with 3 spare spokes/nipples
Nipples: Pillar DSN ergal acid green, black, blue, gold, green or red
Not supplied with quick releases

Our wheels are built by hand in house by highly specialized personnel.
The Bikeonline staff uses the best professional tools on the market into each step of the wheelbuilding process. The P&K Lie truing stand is one example, it allows us to check perfect truing through precise decimal comparators (0.1 millimeters accuracy).
We build most of the tools we use, to fit the level of our builds, which require a high accuracy.
The use of different tensiometers as Park Tool, Pillar and DT Swiss allows us to reach the correct tensions of every spokes.
Each wheel is pre-stressed by hand to ensure that nothing has been settling during the early stages of use and that the spoke tension remains constant for a long time even under very high loads.

This product is to be considered produced on request / on order, due to the high customization needed. It is therefore not possible to use the right of withdrawal or the cancellation of an order already confirmed.
See "Terms and conditions of use". Advance payment is required on this product.

Product Details

RIM HEIGHT
22mm
RIM DIAMETER
28"
INTERNAL WIDTH
13.5mm
WIDTH
18.5mm
MATERIAL RIM
Alluminio
SPOKES MODEL
Alpina steel
WEIGHT PAIR
1.10 kg - 1.20 kg
RIM MANUFACTURE
DRC
HUB MANUFACTURE
Extralite
RIM TYPE
Clincher
TYPE OF WHEELS
Road Rim Brake
