HardWheel AS25 - AS30 - AS35 T800 GrigioCarbonio MTB Wheels / Extralite Hyper3 Carbon MTB wheels 1.110g

HardWheel AS25 - AS30 - AS35 T800 GrigioCarbonio MTB Wheels / Extralite Hyper3 Carbon MTB wheels 1.110g

The super light HardWheel AS25 - AS30 - AS35 T800 rims from Grigiocarbonio have the technology.
100% made in Italy technology pushed to the highest levels. The craftsmanship of Grigiocarbonio and the experience gained with Formula 1 allow to produce extremely light but strong rims, without any weight limit for the rider.

Rims: HardWheel AS25 T800, inner width 25mm, 315g
Rims: HardWheel AS30 T800, inner width 30mm, 330g
Rims: HardWheel AS35 T800, inner width 35mm, 360g

Hubs: Extralite HyperBoost3: 74g + 148g.
Spokes: Alpina Blade HyperLite.
Nipples: Pillar DSN ergal.

No weight limit

Wheelset weight: AS25: 1.110g ; AS30: 1.140g ; AS35: 1200g (Alpina Blade HyperLite flat spokes)

The sales kit includes:
- HardWheel AS25 - AS30 - AS35 T800 / Extralite HyperBoost3
- 3 Alpina Blade HyperLite spokes.
- 3 spare DSN nipples.
- Tubeless tape installed.
- Barbieri Carbonaria valves installed.

REAR WHEEL DISH
  • Standard
DECAL COLOUR
  • Black
NIPPLE COLOUR
  • Black
COMPATIBILITY
  • Sram XD 11/12s
FRONT WHEEL CHANNEL WIDTH
  • 30mm
REAR WHEEL CHANNEL WIDTH
  • 30mm
FRONT HUB STANDARD
  • Boost 15x110mm
REAR HUB STANDARD
  • Boost 12x148mm
AVAILABLE IN 2/3 WEEKS
€1,795.08 €1,877.05 -4.37%

Product Options
REAR WHEEL DISH

Cannondale AI

Standard
DECAL COLOUR


Silver


White


Blue


Yellow


Black


Gold


Red


Acid Green
NIPPLE COLOUR


Orange


Silver


Blue


Black


Gold


Red


Acid Green
FRONT WHEEL CHANNEL WIDTH

25mm

30mm

35mm
REAR WHEEL CHANNEL WIDTH

25mm

30mm

35mm
COMPATIBILITY

Shimano Micro Spline 12s

Shimano/Sram MTB 10/11s

Sram XD 11/12s
FRONT HUB STANDARD

Boost 15x110mm

Lefty 2.0 / Ocho
REAR HUB STANDARD

Boost 12x148mm

  Quantity:

Description

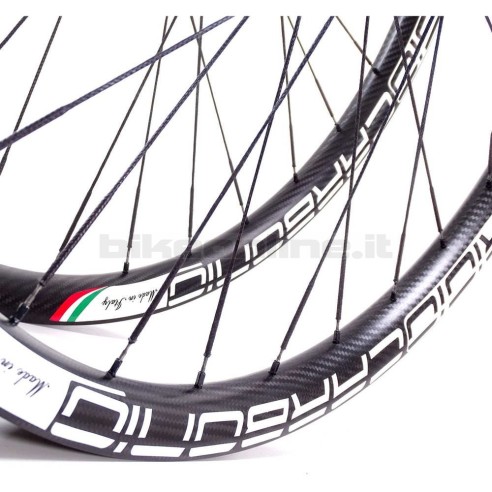

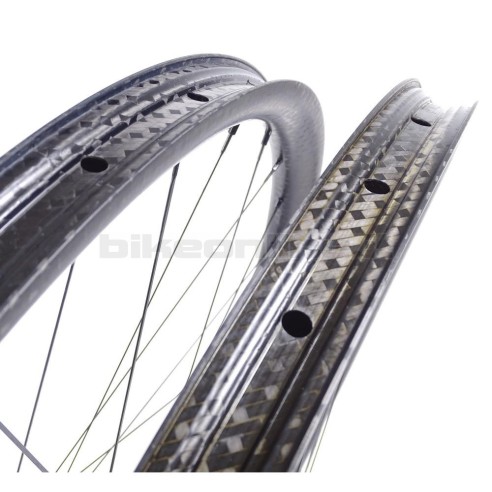

Rim features:
HardWheel AS25 - AS30 - AS35 T800
The super light HardWheel AS25 - AS30 - AS35 T800 rims from Grigiocarbonio have the technology.
100% made in Italy technology pushed to the highest levels. The craftsmanship of Grigiocarbonio and the experience gained with Formula 1 allow to produce extremely light but strong rims, without any weight limit for the rider.

HardWheel AS25
Finish: 3k Twill Matte (glossy finish on request)
Hookles design
Suggested tubeless tape width: 26mm
Max pressure: 3.0 Bar
Minium use pressure: 1.4 Bar
Tubeless ready
Height: 25mm
Width: 29mm
Internal width: 25mm
Number of spokes: 28
Weight: 315g

HardWheel AS30
Finish: 3k Twill Matte (glossy finish on request)
Hookles design
Suggested tubeless tape width: 26mm
Max pressure: 3.0 Bar
Minium use pressure: 1.4 Bar
Tubeless ready
Height: 25mm
Width: 34mm
Internal width: 30mm
Number of spokes: 28
Weight: 330g

HardWheel AS35
Finish: 3k Twill Matte (glossy finish on request)
Hookles design
Suggested tubeless tape width: 26mm
Max pressure: 3.0 Bar
Minium use pressure: 1.4 Bar
Tubeless ready
Height: 25mm
Width: 34mm
Internal width: 30mm
Number of spokes: 28
Weight: 330g

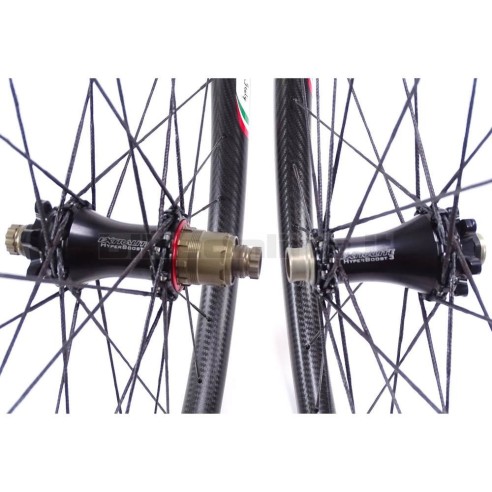

Hub features:
EXTRALITE HYPERBOOST3 F - HYPERLEFTY3 front / HYPERBOOST3 R rear
Front available in Boost 15x110mm or Lefty 2.0/Supermax
Rear available in Boost 12x148mm through axle
Race-proof hyper-engineered rear disc hub.
Bearing options: 440C Stainless Steel, HDC Hybrid Ceramic, XD-15 Ceramic.
ABI Stainless cartridge bearings (2 front + 4 rear)with high load capacity & low friction RS seals plus external O-ring seals.
Oversized 17mm axle with external micro- tuner.
36-60p.o.e. front-engagement freewheel with long-life polyurethane lip-seal.
Black anodized body with laser etched graphics.
Flanges for straight-pull d/b spokes: 28H
Freewheel options: Sram XD (11-12s), Shimano MTB 11s, Shimano 12s compatible (includes special locking-ring)
Bearing options: 440C Stainless Steel, HDC Hybrid Ceramic, XD-15 Ceramic.
Internationl Standard 6 holes rotor fixing
Made in Italy
Weight: from 74g + 148g

Spoke features:
ALPINA BLADE HYPERLITE offer a significant weight saving with no loss of resistance, stiffness of the wheel and durability of the spokes
Section: 2.0-0.9/1.6-2.0mm (bladed section is 0.9 x 1.6mm)
Black colour

Every wheelset is supplied with 3 spare spokes/nipples
Nipples: DSN ergal colour of your choice
Not supplied with quick releases

Our wheels are built by hand in house by highly specialized personnel.
The Bikeonline staff uses the best professional tools on the market into each step of the wheelbuilding process. The P&K Lie truing stand is one example, it allows us to check perfect truing through precise decimal comparators (0.1 millimeters accuracy).
We build most of the tools we use, to fit the level of our builds, which require a high accuracy.
The use of different tensiometers as Park Tool, Pillar and DT Swiss allows us to reach the correct tensions of every spokes.
Each wheel is pre-stressed by hand to ensure that nothing has been settling during the early stages of use and that the spoke tension remains constant for a long time even under very high loads.

This product is to be considered produced on request / on order, due to the high customization needed. It is therefore not possible to use the right of withdrawal or the cancellation of an order already confirmed.
See "Terms and conditions of use". Advance payment is required on this product.

Product Details

RIM HEIGHT
25mm
RIM DIAMETER
29"
INTERNAL WIDTH
25mm
30mm
35mm
WIDTH
29mm
34mm
39mm
RIM MATERIAL
Carbon
SPOKES MODEL
Alpina steel
WEIGHT PAIR
1.10 kg - 1.20 kg
RIM MANUFACTURE
GrigioCarbonio
HUB MANUFACTURE
Extralite
RIM TYPE
Tubeless Ready
TYPE OF WHEELS
XC / Marathon
GRIWHE22093001
