HardWheel AS26 - AS31 T1000 GrigioCarbonio / DT...

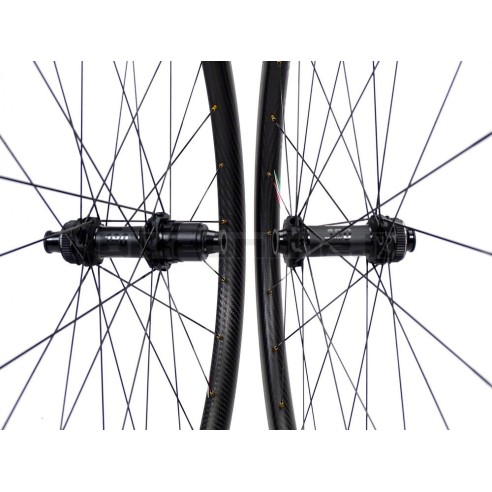

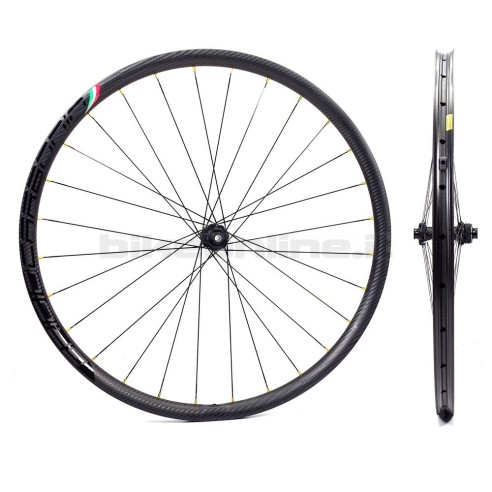

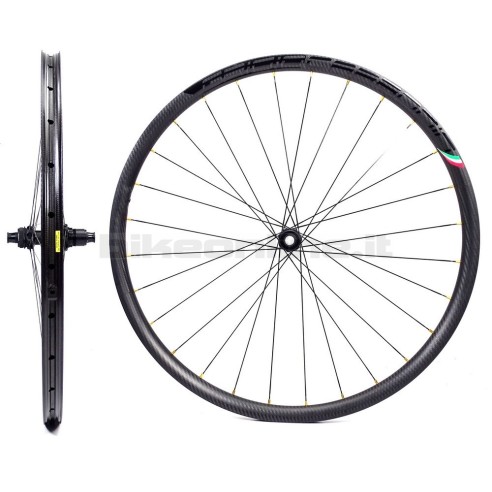

HardWheel AS26 - AS31 T1000 GrigioCarbonio / DT Swiss 180 SP CERAMIC CENTER LOCK boost carbon MTB wheelset from 1.075g

The super light HardWheel AS26 - AS31 T1000 rims from Grigiocarbonio have the technology.
100% made in Italy technology pushed to the highest levels. The craftsmanship of Grigiocarbonio and the experience gained with Formula 1 allow to produce extremely light but strong rims, without any weight limit for the rider.

HardWheel AS26 T1000 carbon rims
, 26mm rim, 255g front rim / 275g rear rim
HardWheel AS31 T1000 carbon rims, 31mm rim, 280g front rim / 300g rear rim

Hubs: DT SWISS 180 SP CERAMIC: 94g Front + 185g. Cassette XD 193g Cassette Microspline
Spokes: Alpina Blade HyperLite.
Nipples: Pillar DSN ergal.

No weight limit

Wheelset weight: AS26: 1.075g; AS31: 1.125g; (Alpina Blade HyperLite)

The sales kit includes:
- HardWheel AS26 - AS31 T1000 / DT Swiss 180 SP CERAMIC CENTER LOCK Boost MTB wheelset.
- 3 Alpina Blade HyperLite flat spokes.
- 3 spare DSN nipples.
- Tubeless tape installed.
- Barbieri Carbonaria valves installed.

REAR WHEEL DISH
  • Standard
DECAL COLOUR
  • Black
NIPPLE COLOUR
  • Black
COMPATIBILITY
  • Sram XD 11/12s
FRONT WHEEL CHANNEL WIDTH
  • 26mm
REAR WHEEL CHANNEL WIDTH
  • 26mm
FRONT HUB STANDARD
  • Boost 15x110mm
REAR HUB STANDARD
  • Boost 12x148mm
AVAILABLE IN 2/3 WEEKS
€2,614.75 €2,696.72 -3.04%

Product Options
REAR WHEEL DISH

Cannondale AI

Standard
DECAL COLOUR


Silver


White


Blue


Yellow


Black


Gold


Red


Acid Green
NIPPLE COLOUR


Orange


Silver


Blue


Black


Gold


Red


Acid Green
FRONT WHEEL CHANNEL WIDTH

26mm

31mm
REAR WHEEL CHANNEL WIDTH

26mm

31mm
COMPATIBILITY

Shimano Micro Spline 12s

Shimano/Sram MTB 10/11s

Sram XD 11/12s
FRONT HUB STANDARD

Boost 15x110mm

Lefty 2.0 / Ocho
REAR HUB STANDARD

Boost 12x148mm

  Quantity:

Description

Rim features:
HardWheel AS26 - AS31 T1000 BERD
The super light HardWheel AS26 - AS31 T1000 BERD rims from Grigiocarbonio have the technology.
100% made in Italy technology pushed to the highest levels. The craftsmanship of Grigiocarbonio and the experience gained with Formula 1 allow to produce extremely light but strong rims, without any weight limit for the rider.

ROCKY KOM rims are intended for XC / Marathon use.

HardWheel AS26
Finish: 12K - Shiny | 12K - Matte | UD - Shiny | UD - Matte
Hookles design
Suggested tubeless tape width: 27mm
Max pressure: 3.0 Bar
Minium use pressure: 1.4 Bar
Tubeless ready
Height: 25mm
Width: 29mm
Internal width: 26mm
Number of spokes: 24 /28
Weight: 255g front rim / 275g rear rim

HardWheel AS31
Finish: 12K - Shiny | 12K - Matte | UD - Shiny | UD - Matte
Hookles design
Suggested tubeless tape width: 26mm
Max pressure: 3.0 Bar
Minium use pressure: 1.4 Bar
Tubeless ready
Height: 25mm
Width: 34mm
Internal width: 31mm
Number of spokes: 24 /28
Weight: 280g front rim / 300g rear rim

Hub features:
DT SWISS 180 SP CERAMIC CENTER LOCK BOOST

Lighter, stiffer, more precise and easier to maintain - the strengths of the 180 hub are further enhanced with the new RATCHET EXP technology. The ultra-reliable freehub system transfers the highest pedaling loads resulting in direct power transmission. Smooth-running SINC Ceramic bearings bring the decisive advantage with their extremely low rolling resistance.
Not only the reliability improved. The fusion of ratchet and threaded ring reduces the number of single parts of the system what offers an important advantage.
A single cylindrical spring ensures faster full engagement and thus increases reliability.
The full engagement of the ratchets creates a large contact surface and therefore low surface pressure that leads to superior reliability.
The integration of the bearing into the threaded ring allows the bearing distance to be maximized. The increased distance further supports the axis, which results in less deflection of the axle and thus protects the bearings and increases their lifetime.

Hub material: Ergal 7075
Engagement system: Ratchet EXP
Point Of Engagement (P.O.E.): 36 (every 10°)
Number of holes: 28 front / 28 rear
Brake disc mount: Center Lock
Front hub axle type: Boost 15 x 110
Rear Hub Axle Type: Boost 12 x 148
Spoke type: Straightpull
Colors: Black matt
Front weight: 94g
Rear weight: 193g  Micro Spline / 185g XD

Spoke features:
ALPINA BLADE HYPERLITE offer a significant weight saving with no loss of resistance, stiffness of the wheel and durability of the spokes
Section: 2.0-0.9/1.6-2.0mm (bladed section is 0.9 x 1.6mm)
Black colour

Every wheelset is supplied with 3 spare spokes/nipples
Nipples: DSN ergal colour of your choice
Not supplied with quick releases

Our wheels are built by hand in house by highly specialized personnel.
The Bikeonline staff uses the best professional tools on the market into each step of the wheelbuilding process. The P&K Lie truing stand is one example, it allows us to check perfect truing through precise decimal comparators (0.1 millimeters accuracy).
We build most of the tools we use, to fit the level of our builds, which require a high accuracy.
The use of different tensiometers as Park Tool, Pillar and DT Swiss allows us to reach the correct tensions of every spokes.
Each wheel is pre-stressed by hand to ensure that nothing has been settling during the early stages of use and that the spoke tension remains constant for a long time even under very high loads.

This product is to be considered produced on request / on order, due to the high customization needed. It is therefore not possible to use the right of withdrawal or the cancellation of an order already confirmed.
See "Terms and conditions of use". Advance payment is required on this product.

Product Details

RIM HEIGHT
25mm
RIM DIAMETER
29"
INTERNAL WIDTH
26mm
31mm
WIDTH
29mm
34mm
RIM MATERIAL
Carbon
SPOKES MODEL
Alpina steel
WEIGHT PAIR
1.10 kg - 1.20 kg
RIM MANUFACTURE
GrigioCarbonio
HUB MANUFACTURE
DT SWISS
RIM TYPE
Tubeless Ready
TYPE OF WHEELS
XC / Marathon
