"READY TO SHIP"
DRC 3XL WIDE 29ER / DT Swiss 350 SP aluminium MTB wheelset from 1.530g
  • -10.86%
DRC 3XL WIDE 29ER / DT Swiss 350 SP...
DRC 3XL WIDE 29ER / DT Swiss 350 SP...
DRC 3XL WIDE 29ER / DT Swiss 350 SP...
DRC 3XL WIDE 29ER / DT Swiss 350 SP...
DRC 3XL WIDE 29ER / DT Swiss 350 SP...
DRC 3XL WIDE 29ER / DT Swiss 350 SP...

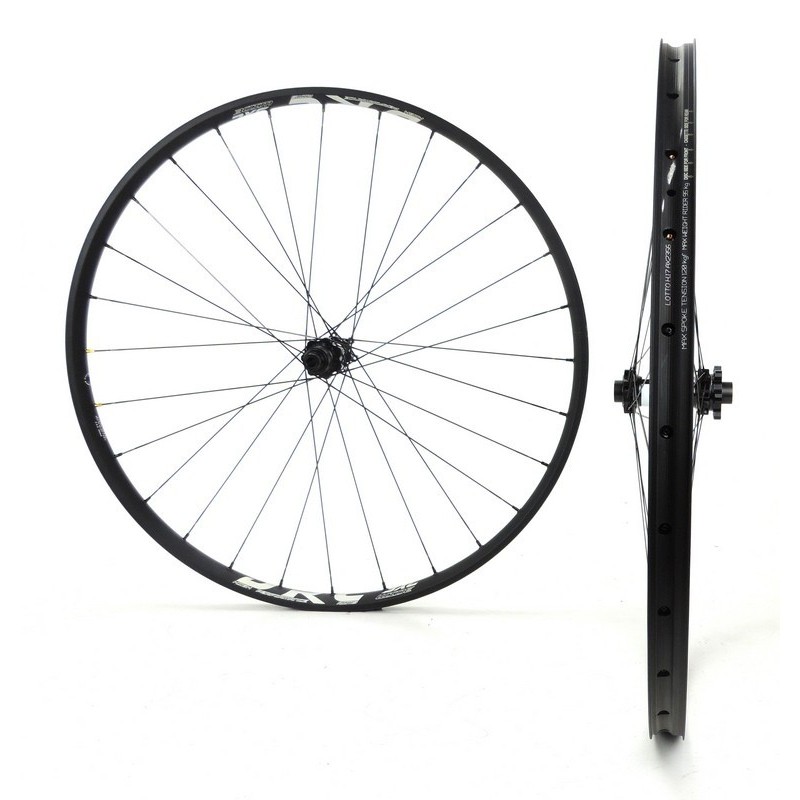

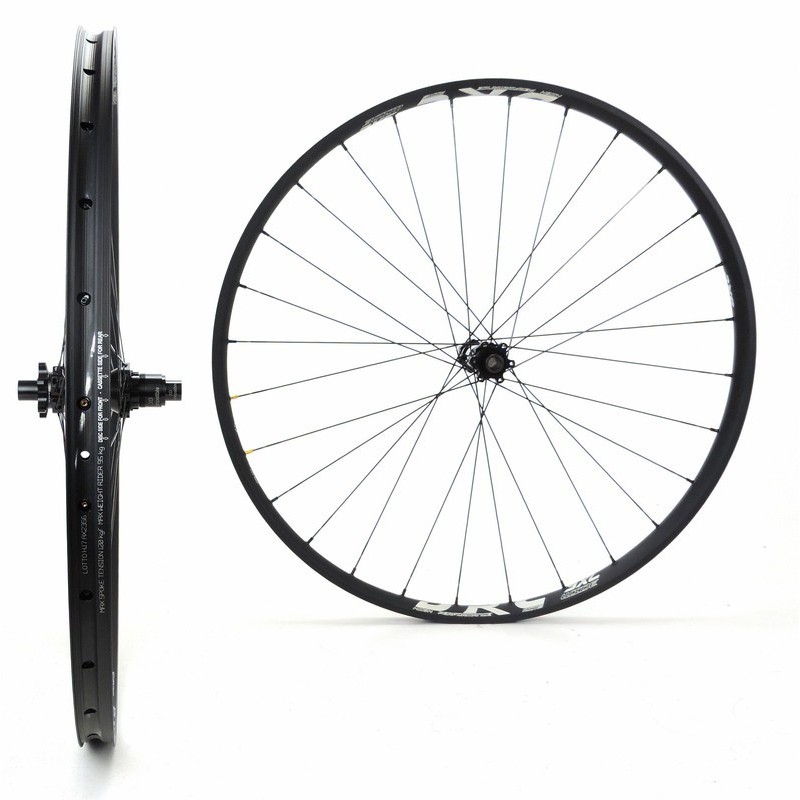

DRC 3XL WIDE 29ER / DT Swiss 350 SP aluminium MTB wheelset from 1.530g

Benchmark for performance, weight and durability!

Rims: DRC 3XL WIDE 29er 440g (inner width 28mm)
Hubs: DT SWISS 350 SP: 145g + 252g
Spokes: Alpina Blade SuperLite or Blade HyperLite
Nipples: Pillar DSN ergal
Number of spokes: 28/28

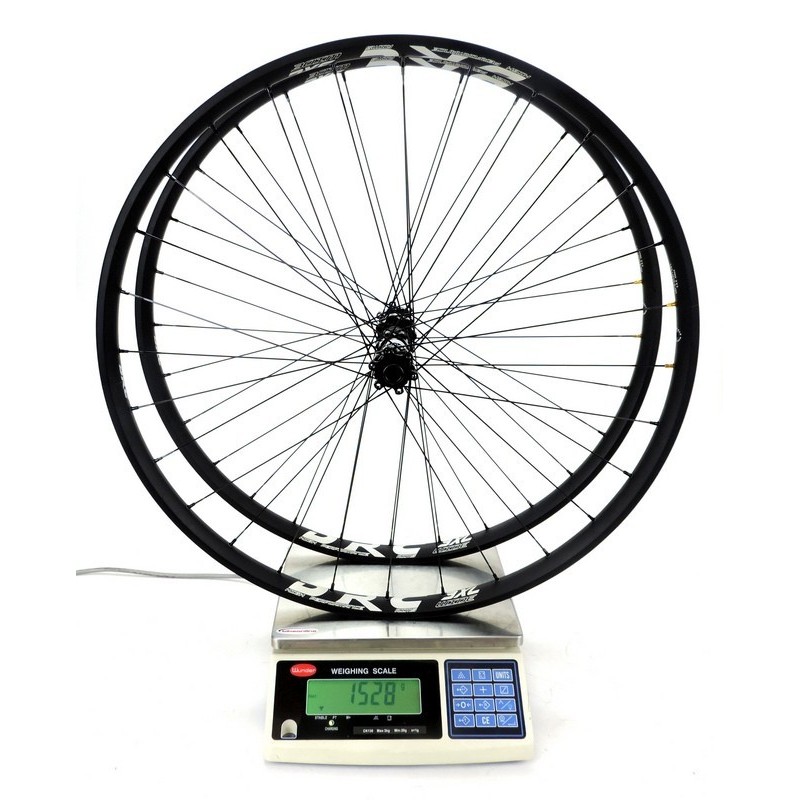

Wheelset weight:
- 1.530g (Blade HL spokes)
- 1.580g
(Blade SL spokes)

NIPPLE COLOUR
  • Black
COMPATIBILITY
  • Sram XD 11/12v
TUBELESS VALVES / TAPE (FITTED)
  • YES Black Valves (Free for bank transfer payment)
SPOKE TYPE
  • Alpina Blade SuperLite
FRONT HUB STANDARD
  • Boost 15x110mm
REAR HUB STANDARD
  • Boost 12x148mm
AVAILABLE IN 7/10 DAYS
€490.98 €550.82 -10.86%

Product Options
NIPPLE COLOUR


Blue


Black


Gold


Red


Green


Acid Green
COMPATIBILITY

Shimano Micro Spline 12v

Shimano/Sram 10/11v

Sram XD 11/12v
TUBELESS VALVES / TAPE (FITTED)

NO

YES Black Valves
[Add €17.48]

YES Black Valves (Free for bank transfer payment)

YES Red Valves
[Add €17.48]

YES Rec Valves (Free for bank transfer payment)
SPOKE TYPE

Alpina Blade HyperLite
[Add €64.37]

Alpina Blade SuperLite
FRONT HUB STANDARD

Boost 15x110mm

QR15 (15x100mm thru axle)
REAR HUB STANDARD

12x142mm (12mm thru axle)

Boost 12x148mm

QR-135mm (quick release)

  Quantity:

Description

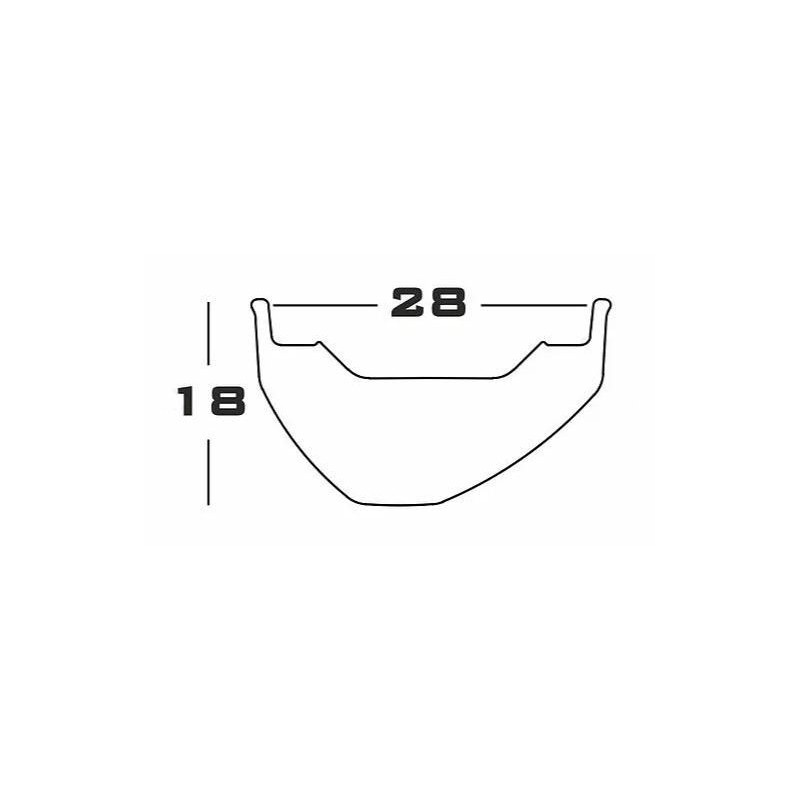

Rim features:
DRC 3XL WIDE 29er
Black anodized aluminium 6082 T6
D-Center Technology: asymmetric design for a better spoke tension
Tubeless ready
Stainless eyelets
Height: 18mm
Width: 31mm
Internal width: 28mm
Number of spokes: 28/28
Weight: 440g

Hubs features:
DT SWISS 350 SP (Straight Pull)
Difficult internal structure and sophisitcated milling-jobs on the outside structure were necessary to finalize these hubs. The hub-body is oversized and at the same time very light. The spoke holes are drilled with 3D angles in order to give the spokes a direction for 3.5 X lacing. We offer various conversion-kits to make the hubs compatible to fit to all major standards.
The hub body is made from forged 7075 T6 material - just a few manufacturers forge the hubshells with this material in order to get the maximum strengh out of the hubshell.
All other hub parts, such as the axles, the freewheel body and the sidecaps are made from 7075 T6 material as well.
The front and the rear axle have a diameter of 17mm at the bearing seats. Weight reductions were realized by removing axle material on the outside structure where it is not needed.
Another feature of our hubs are the anodized axles, which prevent from oxidation and corrosion.
The freewheelbody has 3 pawls, the gear-ring has 24 teeth. This configuration ensures a hub drive system which lasts. 24 engagements is a reliable choice which will still work after a certain usage, even the teeth and the gear-ring show a little bit wear. Other manufacturers strive for excessive engagement points. Due to the micro structure of the gear-ring and pawls, these systems tend to wear out quite fast and fail to work even just a little bit of water gets into the hub.
Front available in QR15 through axle versions, Boost 15x110mm
Rear available in QR-135mm quick release, X12-142mm or Boost 12x148mm through axle versions
Made in ergal 7075
Internationl Standard 6 holes rotor fixing
Weight: 145g + 252g


Spokes features:
ALPINA BLADE SUPERLITE
Made in Italy by Alpina
Made with AISI 302 stainless steel through cold forging process.
Section: 2.0-0.9/2.2-2.0mm (bladed section is 0.9 x 2.2mm)
ALPINA BLADE HYPERLITE
offer a significant weight saving with no loss of resistance, stiffness of the wheel and durability of the spokes
Section: 2.0-0.9/1.6-2.0mm (bladed section is 0.9 x 1.6mm)
Black colour

Every wheelset is supplied with 3 spare spokes/nipples
Nipples: Pillar DSN ergal acid green, black, blue, gold, green or red
Not supplied with quick releases

Our wheels are built by hand in house by highly specialized personnel.
The Bikeonline staff uses the best professional tools on the market into each step of the wheelbuilding process. The P&K Lie truing stand is one example, it allows us to check perfect truing through precise decimal comparators (0.1 millimeters accuracy).
We build most of the tools we use, to fit the level of our builds, which require a high accuracy.
The use of different tensiometers as Park Tool, Pillar and DT Swiss allows us to reach the correct tensions of every spokes.
Each wheel is pre-stressed by hand to ensure that nothing has been settling during the early stages of use and that the spoke tension remains constant for a long time even under very high loads.

This product is to be considered produced on request / on order, due to the high customization needed. It is therefore not possible to use the right of withdrawal or the cancellation of an order already confirmed.
See "Terms and conditions of use". Advance payment is required on this product.

Product Details

DIAMETRO CERCHIO
29"
ALTEZZA CERCHIO
18mm
LARGHEZZA CANALE
28mm
LARGHEZZA ESTERNA CERCHIO
31mm
MATERIALE CERCHIO
Alluminio
PESO COPPIA
1.50 kg - 1.60 kg
PRODUTTORE CERCHI
DRC
PRODUTTORE MOZZI
DT SWISS
TIPOLOGIA CERCHIO
Tubeless Ready
TIPOLOGIA RUOTE
XC / Marathon
