The ROCKY KOM 28A rims close the performance gap between carbon and aluminium, with a low weight that's competitive with most carbon rims with these dimensions.
Our aluminum alloy is produced and drawn in Germany and wisely worked in Italy, where the rim is created by a straight bar, then subjected to the Shot Peening process which reduces the surface tensions of the material due to the processing, improving fatigue resistance and durability, and finally anodized and laser etched.
Rim features:

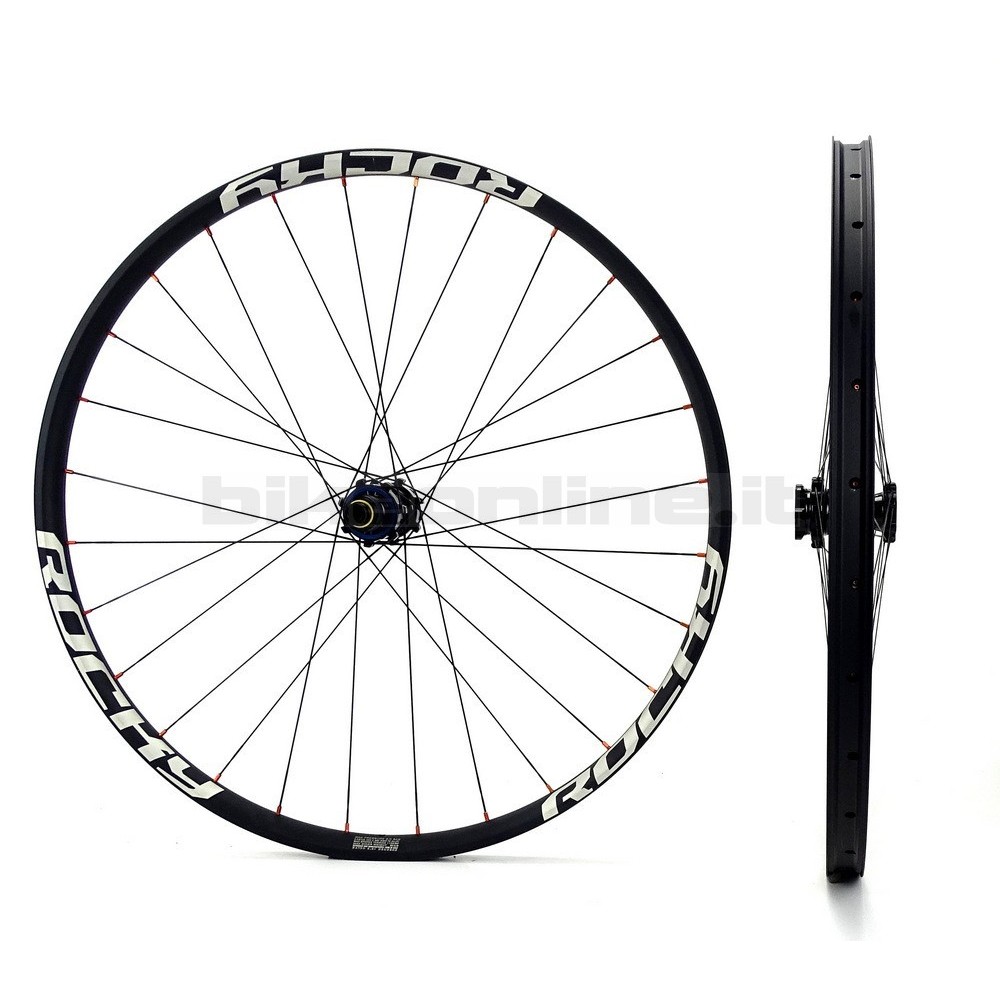

ROCKY KOM 28A 29er
The Climber XC is built for cross country.
The asymmetric design allows to remarkably reduce the spoke tension difference between the two sides of the wheel, with a big advantage of lateral stiffness and stability.
The special inner profile makes the rim easily tubeless convertible using specific valves and tape, not included in the sales kit.
Matt black anodized aluminium 6000 T6
Aeronautic Surface Treatment (AST) eliminates surface tensions of the material, increasing the resistance.
The asymmetric design allows to remarkably reduce the spoke tension difference between the two sides of the wheel, with a big advantage of lateral stiffness and stability.
Hookles design
Suggested tubeless tape width: 29mm
Max pressure: 3.0 Bar
Tubeless ready
Height: 20mm
Width: 31mm
Internal width: 28mm
Number of spokes: 28
Weight: 430g
Hub features:
YUNIPER ULTRALIGHT SP (Straight Pull)
Difficult internal structure and sophisticated milling-jobs on the outside structure were necessary to finalize these hubs. The hub-body is oversized and at the same time very light. The spoke holes are drilled with 3D angles in order to give the spokes a direction for 3.5 X lacing. We offer various conversion-kits to make the hubs compatible to fit to all major standards.
The hub body is made from forged 7075 T6 material - just a few manufacturers forge the hubshells with this material in order to get the maximum strengh out of the hubshell.
All other hub parts, such as the axles, the freewheel body and the sidecaps are made from 7075 T6 material as well.
The front and the rear axle have a diameter of 17mm at the bearing seats. Weight reductions were realized by removing axle material on the outside structure where it is not needed.
Another feature of our hubs are the anodized axles, which prevent from oxidation and corrosion.
The freewheelbody has 3 pawls, the gear-ring has 40 teeth. This configuration ensures a hub drive system which lasts. 40 engagements is a reliable choice which will still work after a certain usage, even the teeth and the gear-ring show a little bit wear. Other manufacturers strive for excessive engagement points. Due to the micro structure of the gear-ring and pawls, these systems tend to wear out quite fast and fail to work even just a little bit of water gets into the hub.
Front available in QR9 quick release, QR15 through axle versions, Boost 15x110mm, Lefty 2.0/SuperMax
Rear available in QR-135mm quick release, X12-142mm or Boost 12x148mm through axe versions
Made in ergal 7075
Internationl Standard 6 holes rotor fixing
Nitro sealed bearings: 2 front, 4 rear
The black surface treatment on the Yuniper NITRO-bearings makes them less prone to rust. Improved seales reduce the probability of water and humidity getting into the bearing.
Furthermore, we used a high end grease which protects the inner structure of the bearing and assures a very good lubrication. Internal clearances and accuracy classes are no foreign words to us.
Compatibility: Shimano/Sram 10/11s, Sram XD 11/12s, Shimano Micro Spline 12s
Ergal cassette body, with 3 pawls with 9° engagement, 40 P.O.E.
Colour: black
Weight: 107g (116g Lefty 2.0) + 217g
Spoke features:

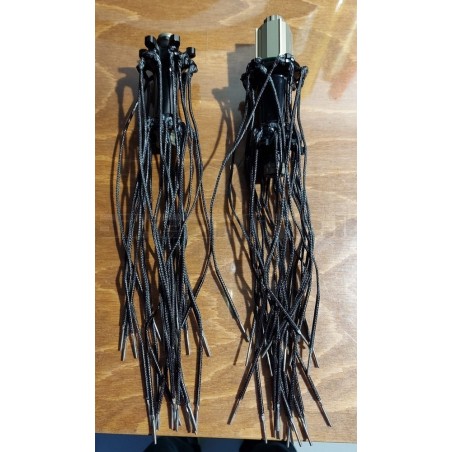

BERD POLYLIGHT SPOKES
Berd spokes are made from an advanced polymer called ultra high molecular weight polyethylene (UHMWPE) that has 12 times the strength-to-weight ratio of steel and floats on water. Berd spokes have an improved fatigue life compared to steel and are impervious to the elements.
Berd spokes use 14 gauge threads to connect to standard nipples the same way metal spokes do. Opposite the threads is a loop, which is pulled through the hub hole and secured with a rod. Berd spokes feature a 1.8mm diameter in the mid-span and are 2.5 grams per spoke.
Advantages of BERD PolyLight spokes:
- the weight of 2.5g allows to save almost 70/80 grams compared to the Alpina HyperLite spokes, that are the lightest steel spokes available on the market
- 12 times the strength-to-weight ratio of steel
- Berd spokes also damp vibrations much more effectively than steel spokes. This results in a more comfortable, smoother, ride. Berd spokes provide 200% better vibration damping than metal spokes.
The UCI, which regulates professional cycling, has specifically approved Berd spokes, so you can race Berd spokes from local crits to the Tour de France.
Made in USA
Every wheelset is supplied with 2 spare spokes/nipples
Nipples: DSN ergal
Not supplied with quick releases
Our wheels are built by hand in house by highly specialized personnel.
The Bikeonline staff uses the best professional tools on the market into each step of the wheelbuilding process. The P&K Lie truing stand is one example, it allows us to check perfect truing through precise decimal comparators (0.1 millimeters accuracy).
We build most of the tools we use, to fit the level of our builds, which require a high accuracy.
The use of different tensiometers as Park Tool, Pillar and DT Swiss allows us to reach the correct tensions of every spokes.
Each wheel is pre-stressed by hand to ensure that nothing has been settling during the early stages of use and that the spoke tension remains constant for a long time even under very high loads
