The WR Compositi Madrera 3K carbon-fiber frame-set is designed and manufactured to meet the needs of each individual cyclist.
Each Madrera Road frame-set is handcrafted with advanced composites engineering using a thermoset bonded tube construction.
The average weight of a Madrera frame weights 950 grams (Size S), a result obtained thanks to the careful use of high modulus T800, UMH UD and 3K carbon fibres and the precise construction method developed and constructed entirely in Italy.

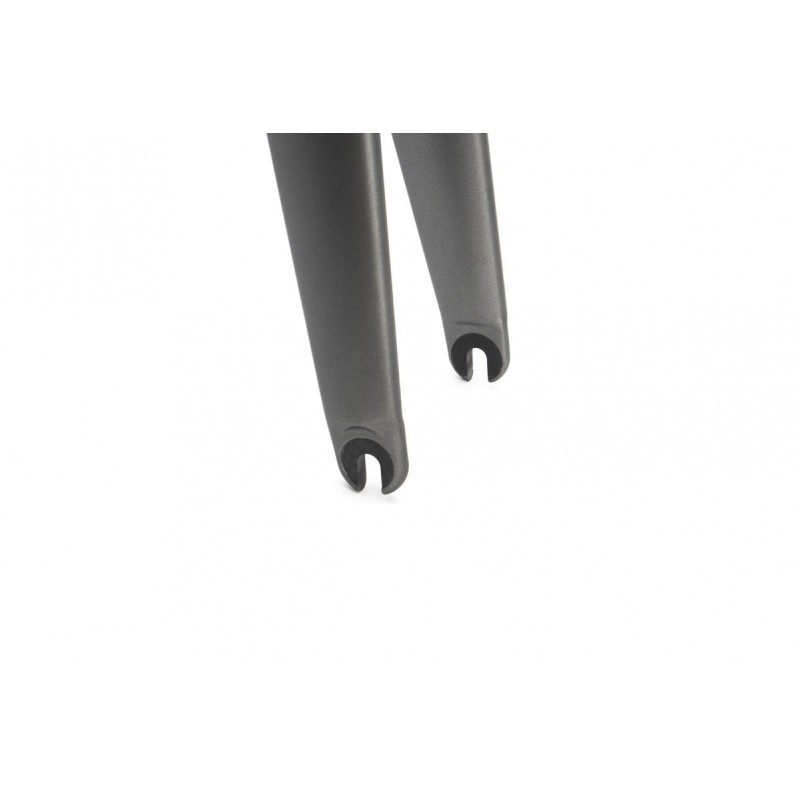

The steerer tube is conical (1 ½ “- 1” -⅛) and is paired with a WR Compositi fork designed and built to adapt to the characteristics of the frame, ensuring stability at high speeds, precise cornering, and consistent road shock absorption, guaranteeing a secure, stable ride.

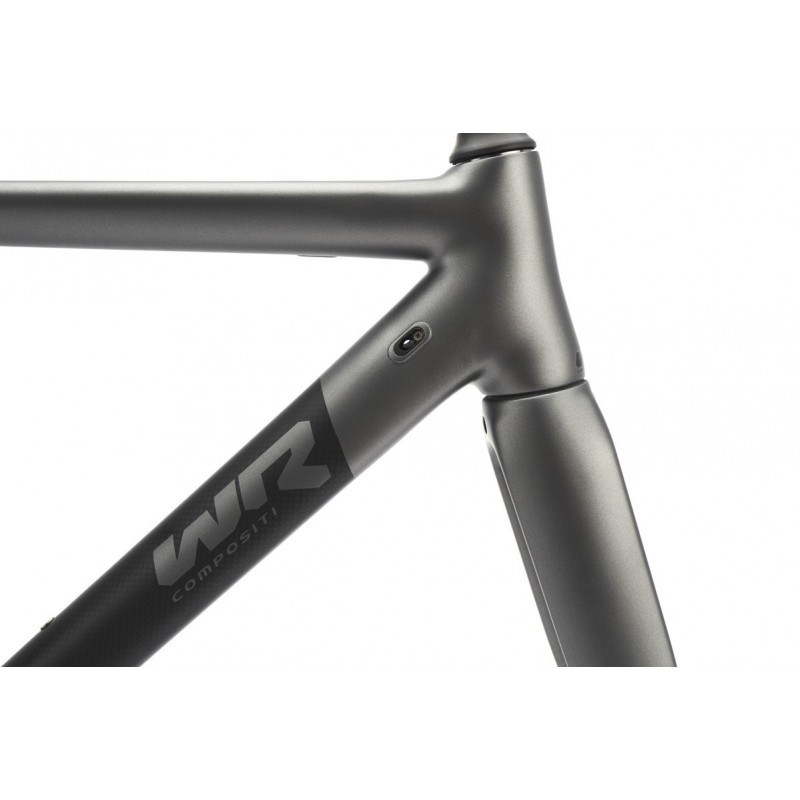

The asymmetric, tapered head tube offers the ideal configuration for achieving the best torsional stiffness while maintaining an optimal low weight.

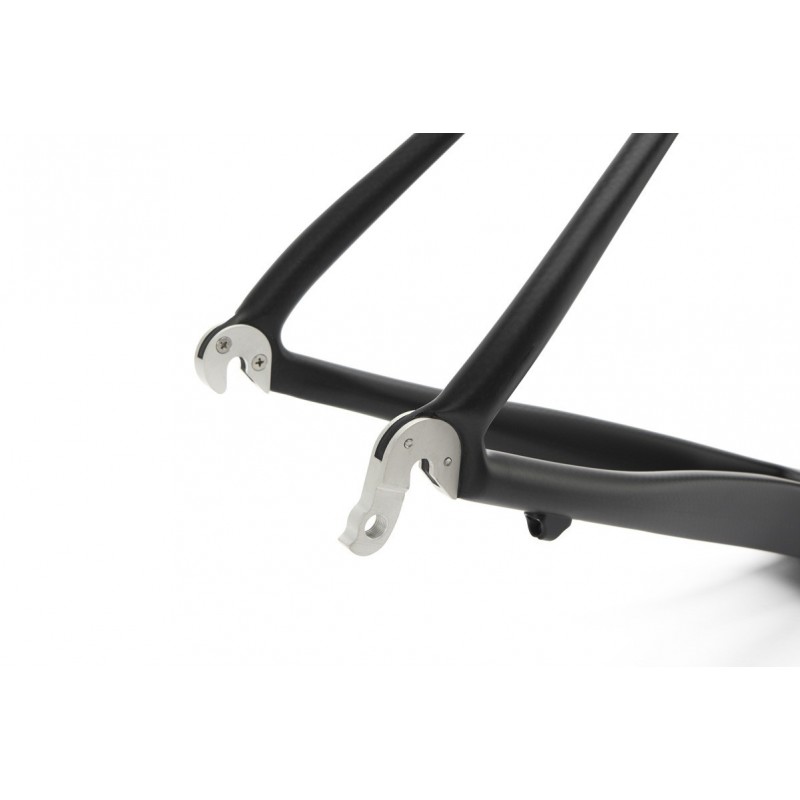

The frame is outfitted with aluminum reinforced carbon fibre dropouts and rear derailleur mount which are easily replaceable.

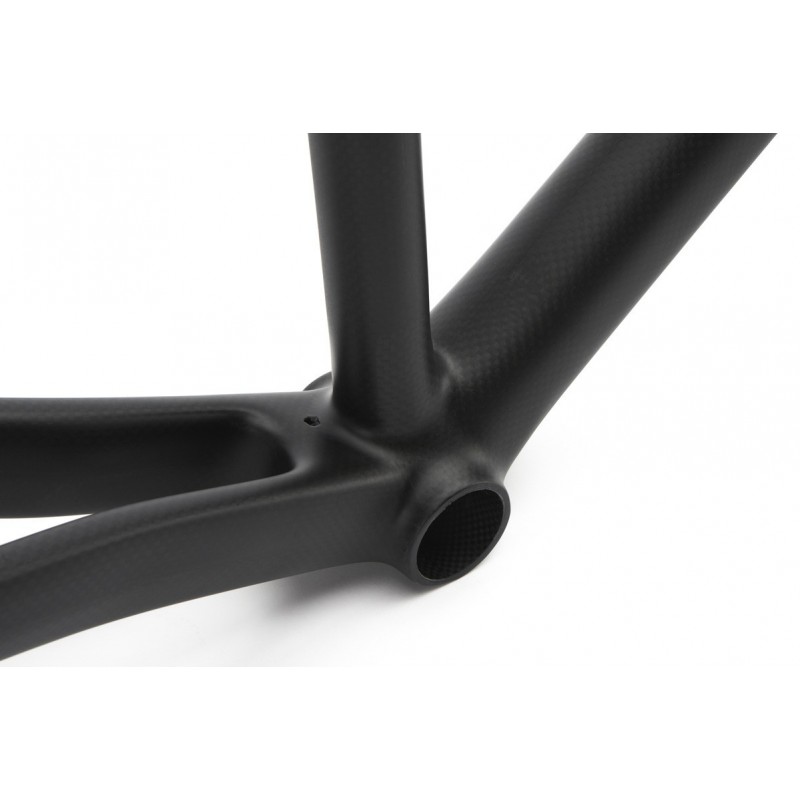

The bottom bracket standard is BB-30, and can be mounted with crank-sets with 24-30mm spindles, used with either internal electronic or mechanical cable routing and allows for quick installation and easy bearing maintenance.
The front derailleur clamp for braze-on derailleurs is an extremely lightweight, reliable carbon-fiber clamp. The characteristics of the Madrera frame make it particularly suitable for intensive and/or professional use.
Measurements, geometry and handling ideals are all customisable and can be adapted based on needs and use of each individual cyclist.
The Madrera frame’s light weight makes it particularly suitable for long and challenging climbs.
The WR Compositi Madrera frame is can be custom-made as well as being available in standard sizes.
| ROAD FRAME MADRERA | TECHNICAL SPECIFICATIONS |
| Model | MADRERA |
| Frame Weight | Starting from 950 g +/- 5% (size S) |
| Fork | WR FK3 1"1/2 |
| Fork Weight | Starting from 340g +/- 5% (170mm steerer) |
| Use | Road racing |
| Headset | Integrated – 1”+1/8”- 1”+1/2” |
| Frame material | T800 – UHM |
| Bottom Bracket Shell | Press-fit 86,5/BB30/Press-fit 30 |
| Compatibility | Mechanic/Electronic |
| Brakes | Central |
| Cable Routing | Internal |

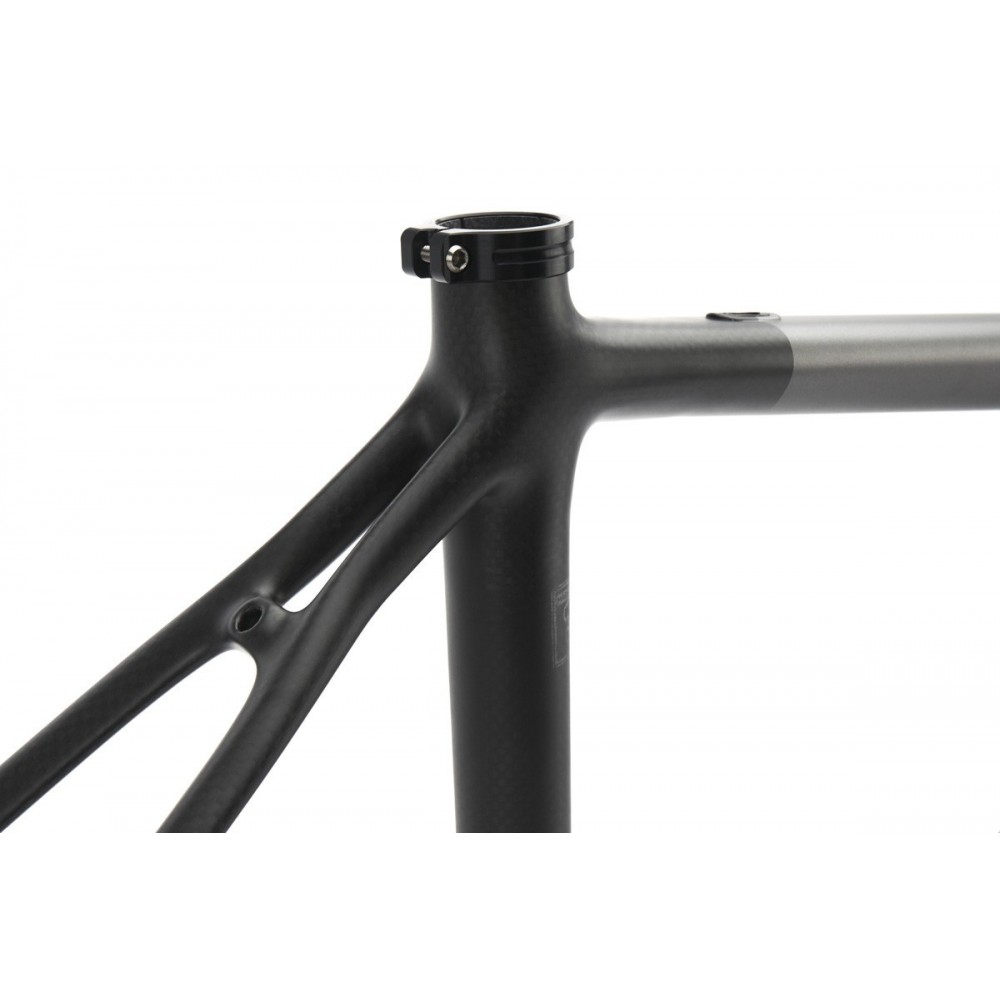

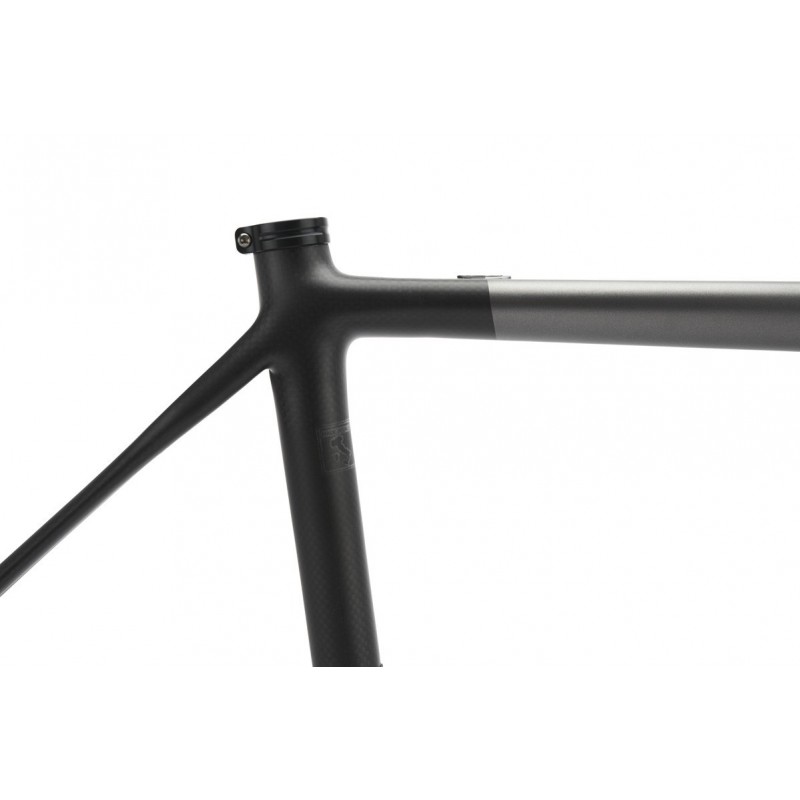

| Seatclamp | 34,9 mm |
| Seatpost | 31,6 mm |
| Front derailleur | T800 |
| Drop-outs | T800 |
| Occhiello attacco cambio | Al 2024 sostituibile |
| Size | Custom Made |
This product is to be considered produced on request / on order, due to the high customization needed. It is therefore not possible to use the right of withdrawal or the cancellation of an order already confirmed.
See "Terms and conditions of use". Advance payment is required on this product.
