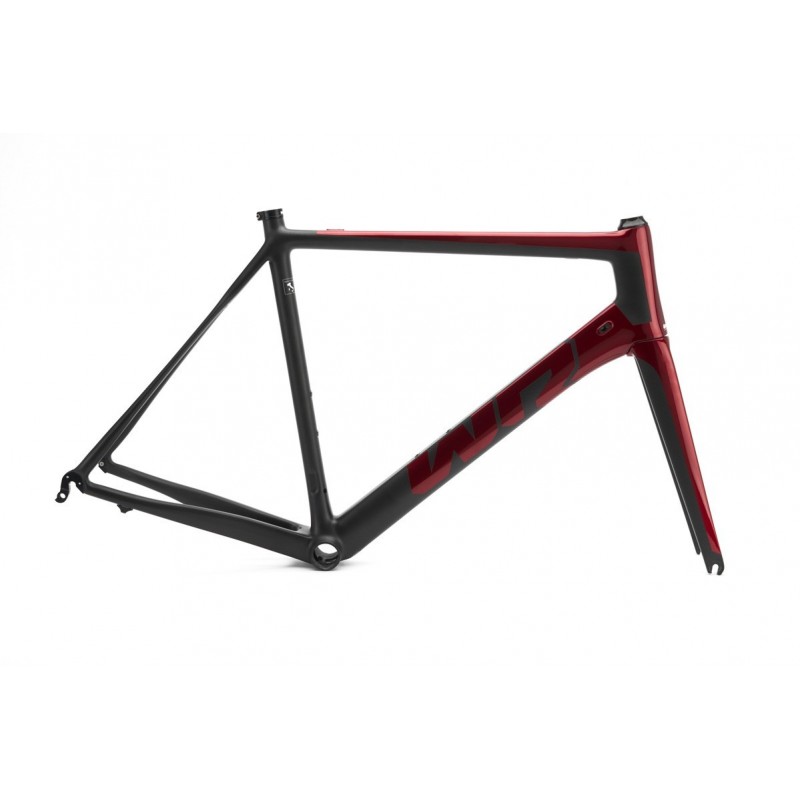

The WR Compositi 3K Predore fully customisable carbon-fibre composite frame is impeccably balanced with an outstanding responsiveness, making it the ultimate light, high-performance racing machine.
The Predore frame composition has been carefully developed and tested, finding the perfect layup of T800 high-modulus carbon fiber ensuring maximum power transfer, outstanding comfort, and unmatched handling. The aerodynamic shape of the carbon fiber tubing lowers aerodynamic drag and enhances torsional rigidity.
The tapered headtube is designed for a WR Compositi fork specifically developed to compliment the frame and integrate seamlessly with the head tube. The frame is designed with fully-internal cable routing providing a sleek, performance conscious set-up, and each made-to-order Predore frame can be outfitted for mechanical or electronic cable routing.
Rear dropouts are also made entirely our of carbon fiber, with replaceable aluminium alloy plates to protect the frame while inserting and removing hubs.
All Predore frames can be made-to-measure, as well as being available in standard sizing. Geometry and color are customisable.
ROAD FRAME PREDORE | TECHNICAL SPECIFICATIONS |
Model | PREDORE |
Frame Weight | Starting from 980 g +/- 5% (size S) |
Fork | WR FK4 custom 3K |
Fork Weight | 340g +/- 5% (170mm steerer) |
Use | Road racing |
Headset | Integrated – 1”+1/8”- 1”+1/2” |
Frame material | T800 – UHM |

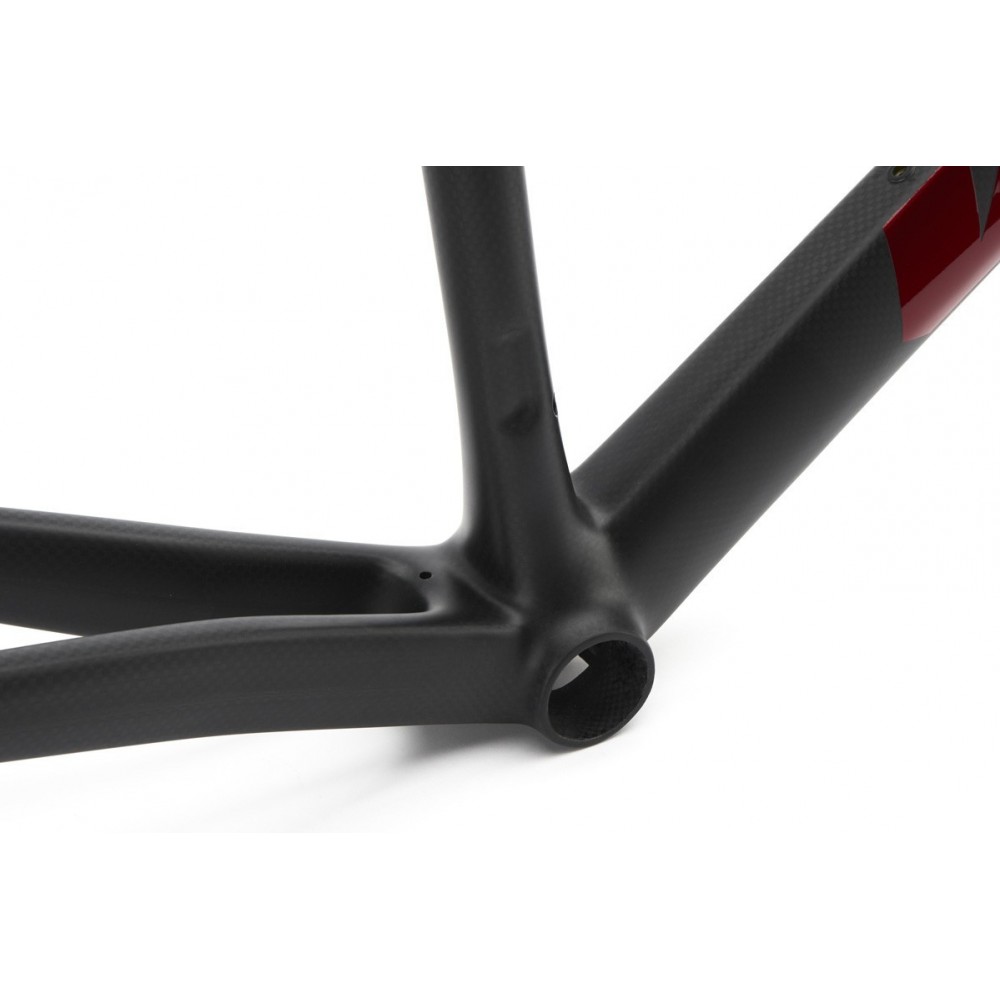

Bottom Bracket Shell | Press-fit 86,5/BB30/Press-fit 30 |
Compatibility | Mechanic/Electronic |
Brakes | Central/Dual Pivot |
Cable Routing | Internal |
Seatclamp | 31,8 mm |
Seatpost | 27,2 mm |
Front derailleur | T800 |
Drop-outs | T800 |
Size | Custom Made |
This product is to be considered produced on request / on order, due to the high customization needed. It is therefore not possible to use the right of withdrawal or the cancellation of an order already confirmed.
See "Terms and conditions of use". Advance payment is required on this product.
